LDH-FA Series
Brand: PicoQuant | Category: Nanotechnology

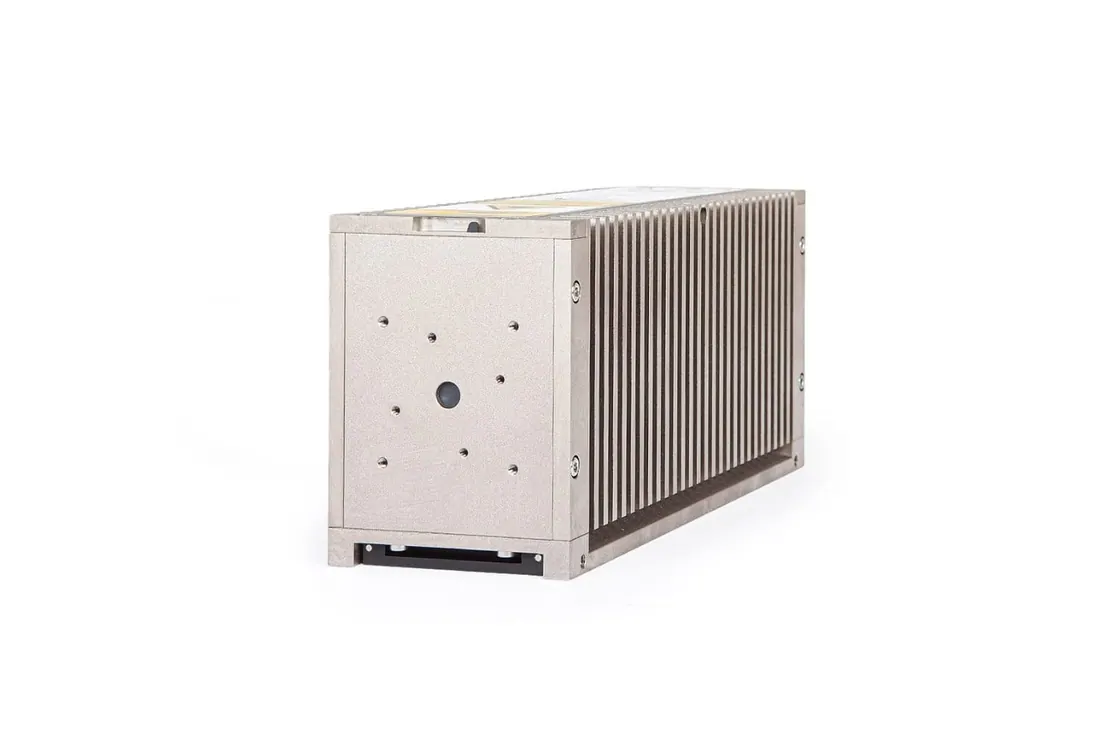

The LDH-FA Series are fibre amplified picosecond laser diode heads delivering high pulse energy and stable output. Configurations cover UV, visible and infrared wavelengths, and optional fibre coupling is available for beam delivery. They are used for time-resolved techniques and for LiDAR.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength range | 266 nm to 1560 nm |
| Average power | up to 450 mW depending on wavelength |
| Repetition rates | < 10 Hz to 80 MHz depending on type |
| Spectral width | << 1 nm |
| Power stability over 12 hours | < 3 % RMS |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about PicoQuant equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
