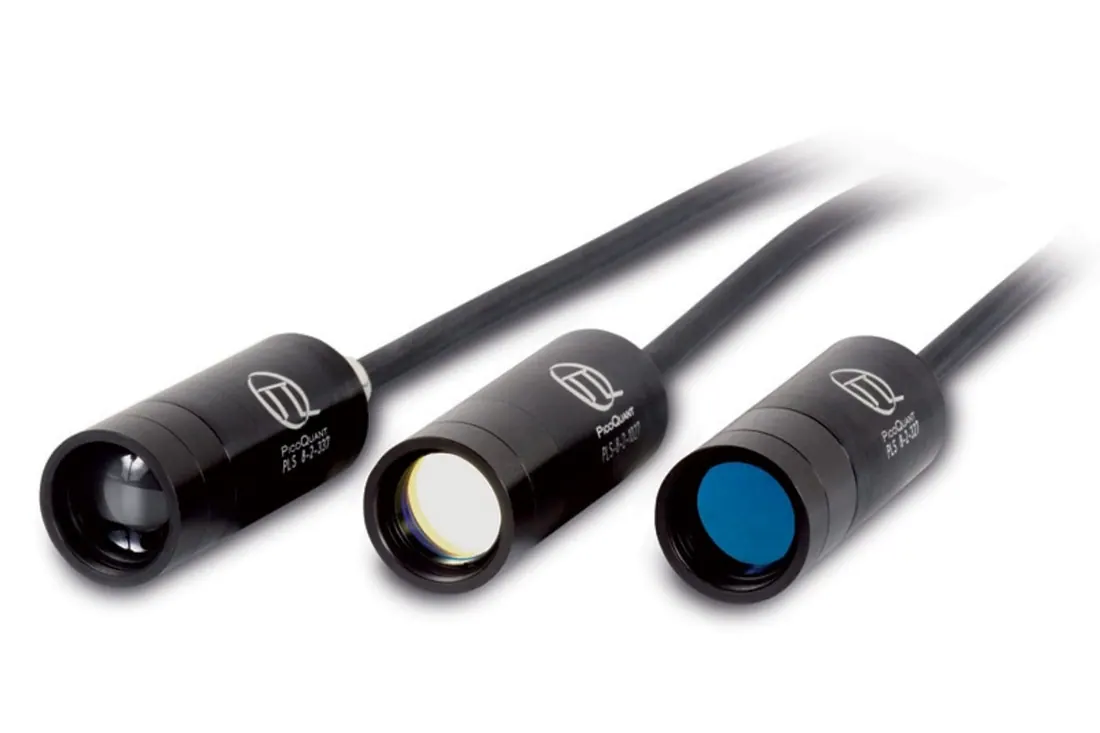

PLS Series
Brand: PicoQuant | Category: Nanotechnology
The PLS Series are sub-nanosecond pulsed LED sources for fluorescence excitation. The PLS 355 emits at 355 ± 10 nm with a typical pulse width of 900 ps, and the PLS 575 emits at 575 ± 10 nm with a pulse width below 1.3 ns. Both run at repetition rates of up to 10 MHz.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum repetition rate | 10 MHz |
| Wavelength | 355 ± 10 nm (PLS 355), 575 ± 10 nm (PLS 575) |
| Average power at 10 MHz | 1.0 μW without filter (PLS 355), 3.0 μW without filter (PLS 575) |
| Average power at 10 MHz with filter (PLS 355) | 0.5 μW with colored glass filter, 1.0 μW with bandpass filter |
| Spectral width | < 10 nm (PLS 355), < 20 nm (PLS 575) |
| Pulse width (typ.) | 900 ps (PLS 355), < 1.3 ns (PLS 575) |
