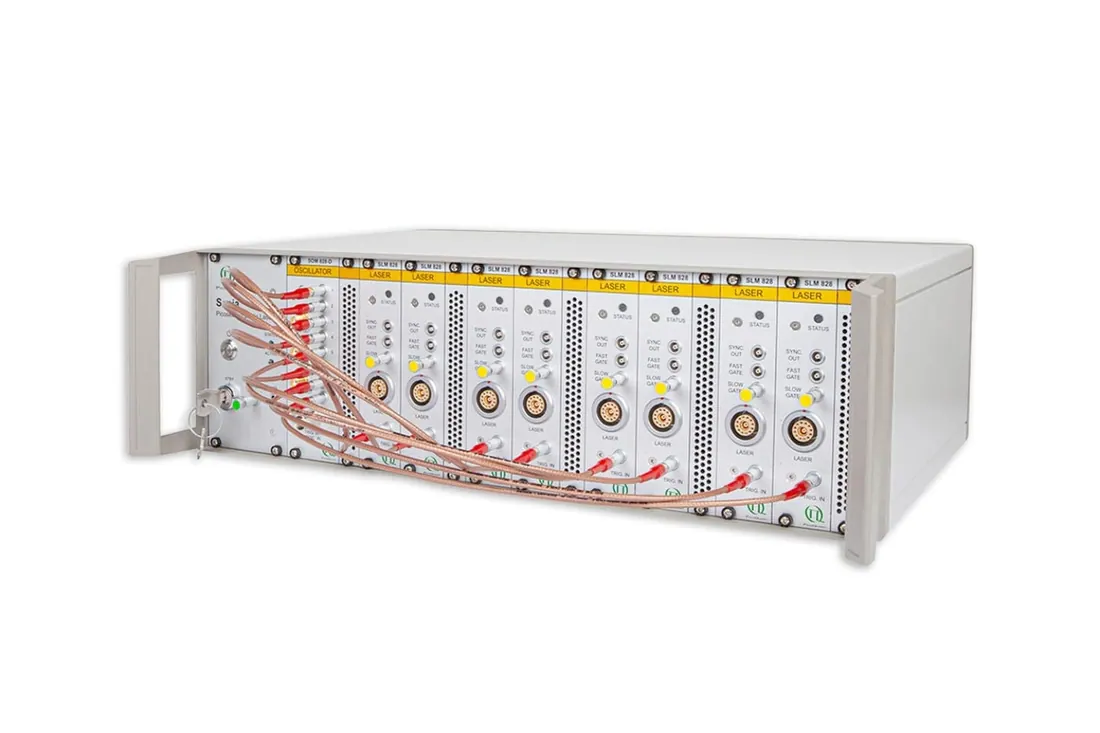

Sepia PDL 828
Brand: PicoQuant | Category: Nanotechnology
The Sepia PDL 828 is a modular multichannel driver for picosecond diode laser heads. The large mainframe holds one oscillator module and up to eight laser driver modules, each running at 80, 40, 20, 10, 5 or 2.5 MHz with typical jitter of 3 to 5 ps. It supports pulsed, burst and CW excitation.
Technical Specifications
| Parameter | Value |
|---|---|
| Mainframe | 1 slot for oscillator module plus 8 laser driver slots (Large, L) or 2 laser driver slots (Small, S) |
| Repetition frequency of internal oscillator | 80, 40, 20, 10, 5 or 2.5 MHz (user-selectable) |
| Jitter | Typ. 3-5 ps |
| External trigger frequency range | up to 40 MHz |
| External synchronization | 6.25 to 85 MHz (SOM 828-D only) |
| Burst length | up to 16.7 million pulses |
