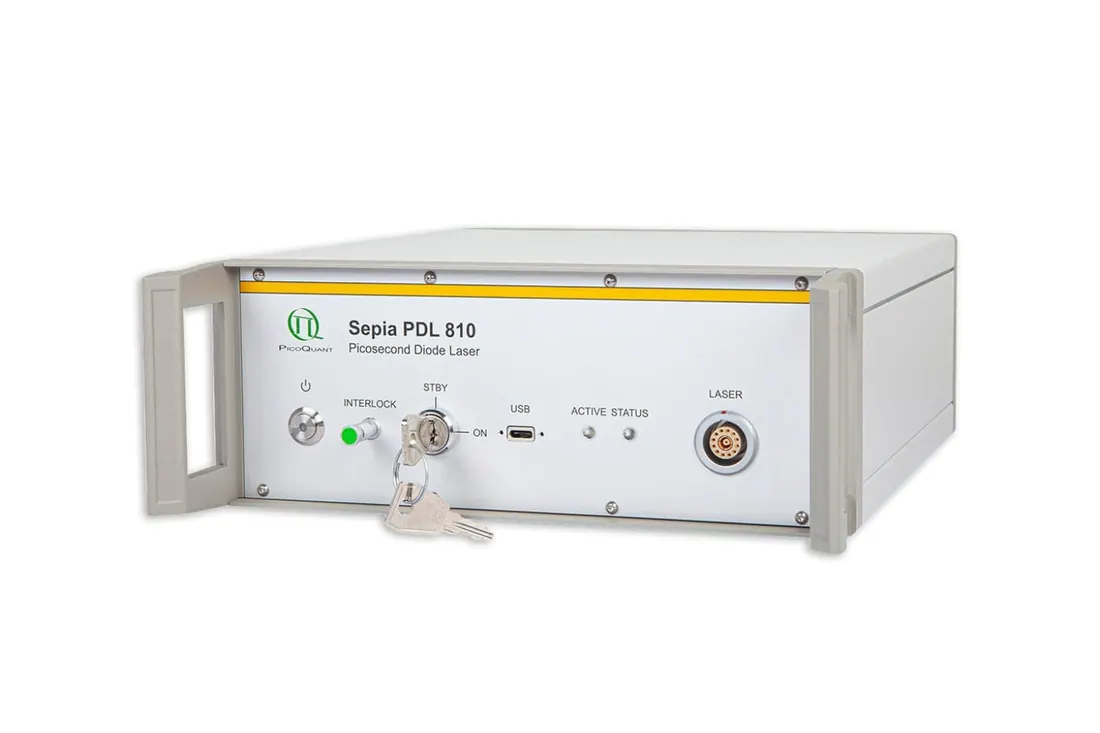

Sepia PDL 810
Brand: PicoQuant | Category: Nanotechnology
The Sepia PDL 810 is a single channel driver for picosecond diode laser heads. It runs in pulsed or continuous wave mode at 80, 40, 20, 10, 5 or 2.5 MHz derived from an 80 MHz base frequency, with typical jitter of 3 to 5 ps. The unit is controlled over a USB 2.0 interface.
Technical Specifications
| Parameter | Value |
|---|---|
| Operation mode | pulsed or Continuous wave (CW) |
| Base frequency | 80 MHz |
| Repetition frequencies | user selectable 1, 1/2, 1/4, 1/8, 1/16, 1/32 of base frequency, giving 80, 40, 20, 10, 5 or 2.5 MHz |
| Jitter | Typ. 3-5 ps |
| External trigger frequency range | single shot to 80 MHz |
| Delay, trigger input to optical output | typ. 35 ± 5 ns |
