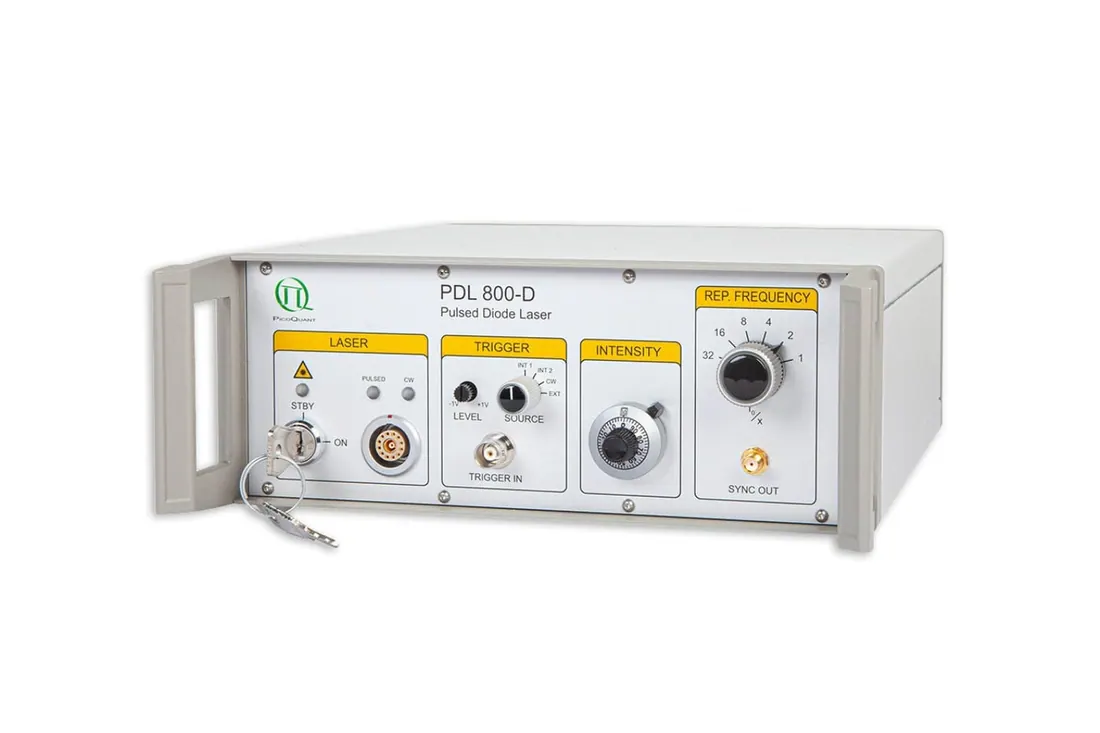

PDL 800-D
Brand: PicoQuant | Category: Nanotechnology
The PDL 800-D is a driver unit for picosecond pulsed diode laser heads. It runs in pulsed or continuous wave mode from base frequencies of 80 MHz or 1 MHz, giving selectable repetition rates between 31.25 kHz and 80 MHz. External triggering is accepted over 10 Hz to 80 MHz for synchronisation with other equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Internal oscillator | crystal locked (up to 80 MHz max.) |
| Operation mode | Pulsed or Continuous wave (CW) |
| Base frequencies | 80 MHz, 1 MHz (selectable) |
| Repetition frequencies | user selectable 80, 40, 20, 10, 5 or 2.5 MHz, or 1000, 500, 250, 125, 62.5 or 31.25 kHz |
| External trigger frequency range | 10 Hz to 80 MHz |
| Delay, trigger input to optical output | typ. 35 ± 5 ns |
