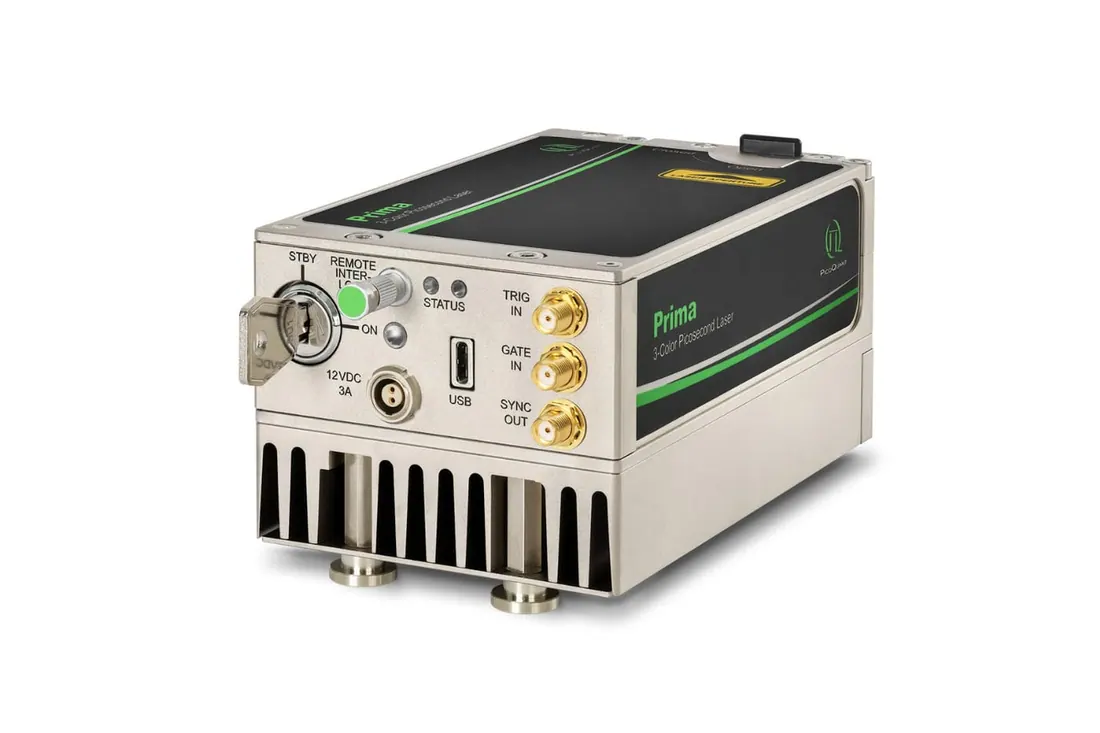

Prima
Brand: PicoQuant | Category: Nanotechnology
Prima is a compact stand-alone gain-switched picosecond laser that provides three wavelengths in one unit. The wavelength options are 375, 405, 450, 485, 515 and 640 nm, and the repetition rate is selectable from 1 kHz to 200 MHz. It supports pulsed and CW excitation for nanosecond to millisecond experiments.
Technical Specifications
| Parameter | Value |
|---|---|
| Available wavelengths | 375, 405, 450, 485, 515, 640 nm |
| Repetition rates (internal) | user selectable 1 kHz to 200 MHz, in 1 kHz increments from 1 to 999 kHz and 1 MHz increments from 1 to 200 MHz |
| Repetition rates (external) | single shot to 200 MHz |
| Jitter | < 12 ps (RMS) |
| Polarization Extinction Ratio (PER) | Typ. > 30:1 (> 15 dB) |
| Power stability (12 hours) | < 3 % RMS |
