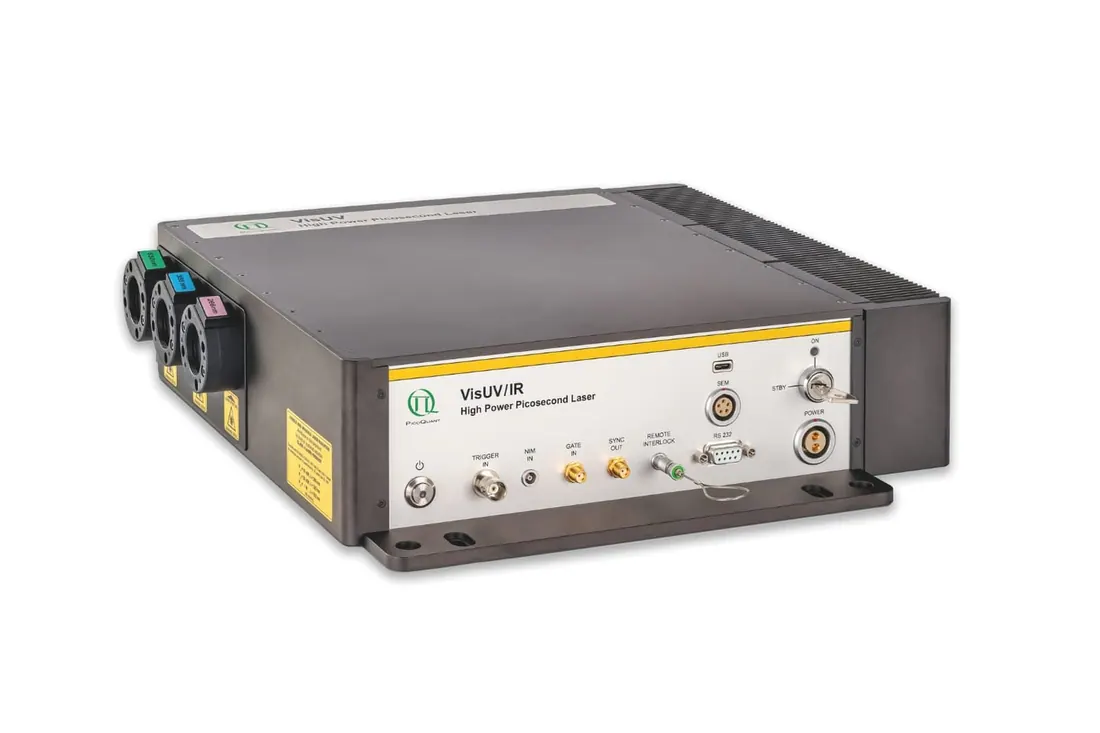

VisUV
Brand: PicoQuant | Category: Nanotechnology
VisUV is a stand-alone picosecond laser covering wavelengths from 266 to 590 nm with a spectral width well below 1 nm. Internal repetition rates are selectable between 31.25 kHz and 80 MHz, and external triggering runs from below 1 Hz to 80 MHz. It provides UV to visible excitation for time-resolved research.
Technical Specifications
| Parameter | Value |
|---|---|
| Available wavelength | 266 to 590 nm |
| Spectral width | << 1 nm |
| Polarization Extinction Ratio (PER) | > 1:300 (> 25 dB) |
| Power stability (12 hours) | < 3 % RMS |
| Repetition rates (internal) | user selectable 80, 40, 20, 10, 5 or 2.5 MHz (80 MHz base frequency), or 1 000, 500, 250, 125, 62.5 or 31.25 kHz (1 MHz base frequency) |
| Repetition rates (external via NIM or TTL input) | < 1 Hz to 80 MHz |
