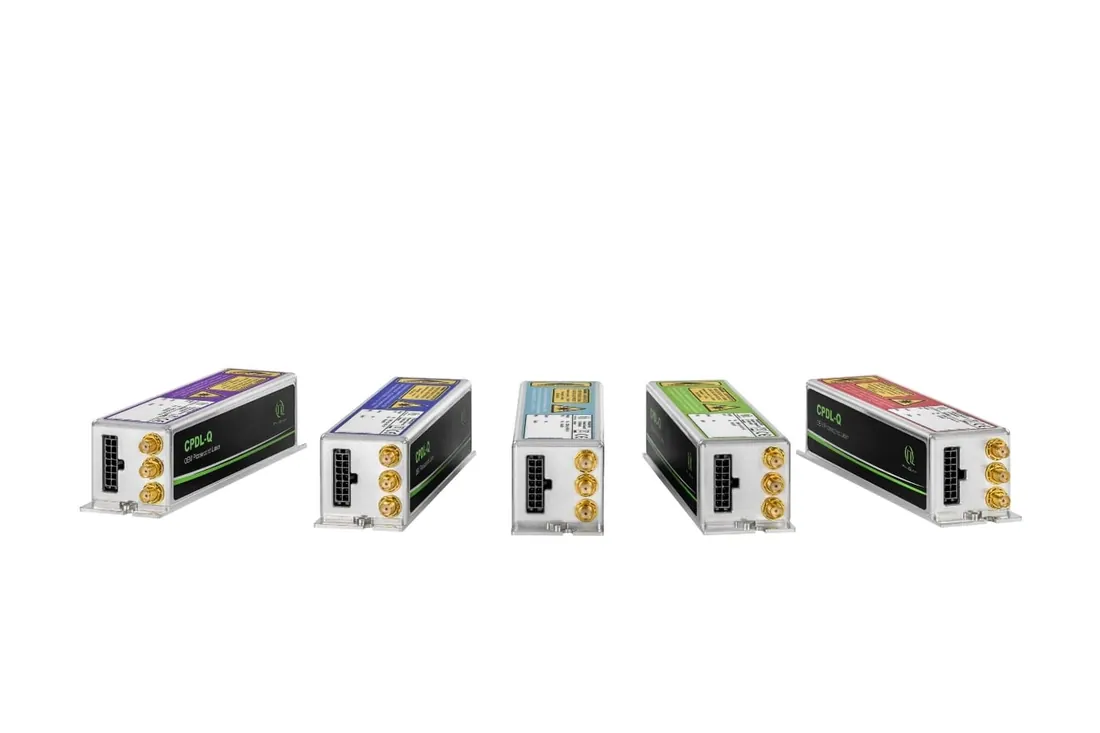

CPDL-Q
Brand: PicoQuant | Category: Nanotechnology
The CPDL-Q are compact picosecond diode laser modules intended for integration into other instruments. The internal repetition rate is selectable from 1 kHz to 200 MHz, timing jitter stays below 12 ps RMS and optical gating rises or falls in under 3 ns. Each module measures 40 x 40 x 160 mm and weighs 0.31 kg.
Technical Specifications
| Parameter | Value |
|---|---|
| Internal repetition rate | 1 kHz to 999 kHz (step size 1 kHz), 1 MHz to 200 MHz (step size 1 MHz) |
| External range | 0 Hz to 200 MHz |
| Timing jitter | < 12 ps (RMS) |
| Optical rise / fall time (gating) | < 3 ns |
| Power stability within 8h | < 1 % (RMS) |
| Dimensions | 40 x 40 x 160 mm (w x h x l), weight 0.31 kg |
