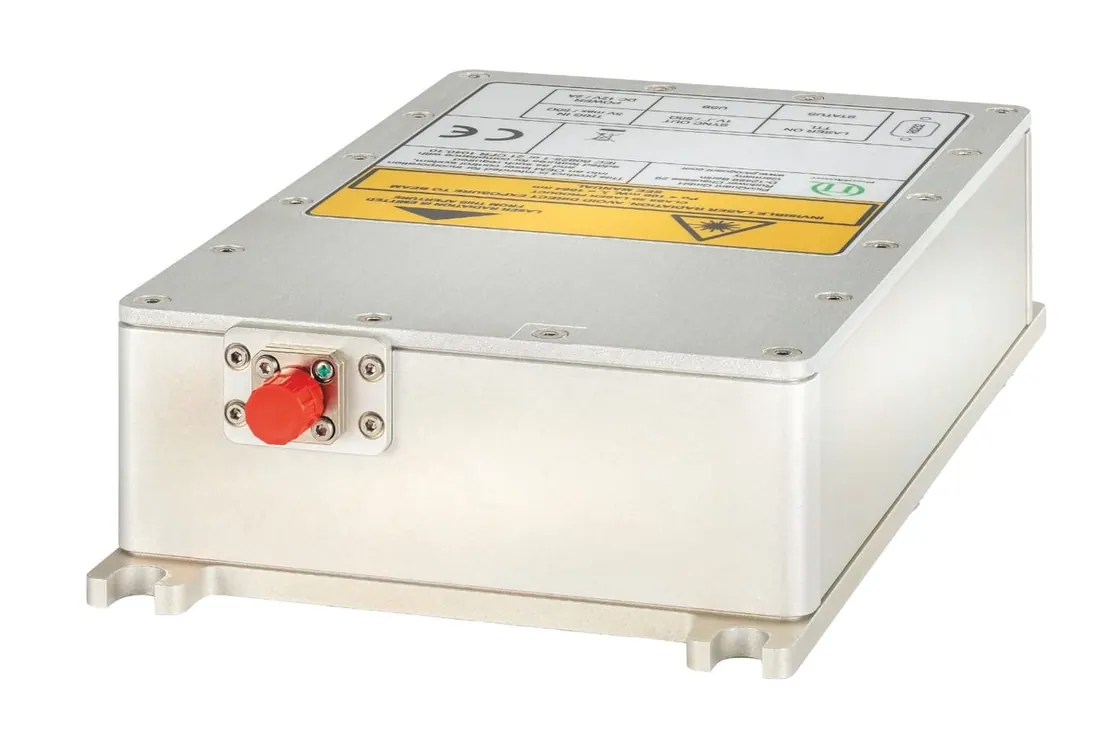

PPL 512 / PPA 512
Brand: PicoQuant | Category: Nanotechnology
The PPL 512 and PPA 512 are a programmable pulse laser and amplifier for nanosecond pulse shaping. A 512 byte pattern is read out at 5 GS / s in 200 ps time bins, so the emitted waveform can be defined step by step. A synchronisation output and USB control are provided for integration into larger setups.
Technical Specifications
| Parameter | Value |
|---|---|
| Pulse pattern length | 512 bytes |
| Readout speed | 5 GS / s; 200 ps time bins; other sampling rates < 5 GS / s on request |
| Synchronization output | + 500 mV into 50 Ohm; falling edge at byte 253; rising edge at byte 508 |
| Power input | 12 V (max. 18 V), current max. 1.7 A |
| Dimensions | 210 × 118 × 47.4 mm (l × w × h), net weight laser head 0.8 kg |
| Interface | USB 2.0 UART (Virtual COM-Port), baud rate 115200 |
