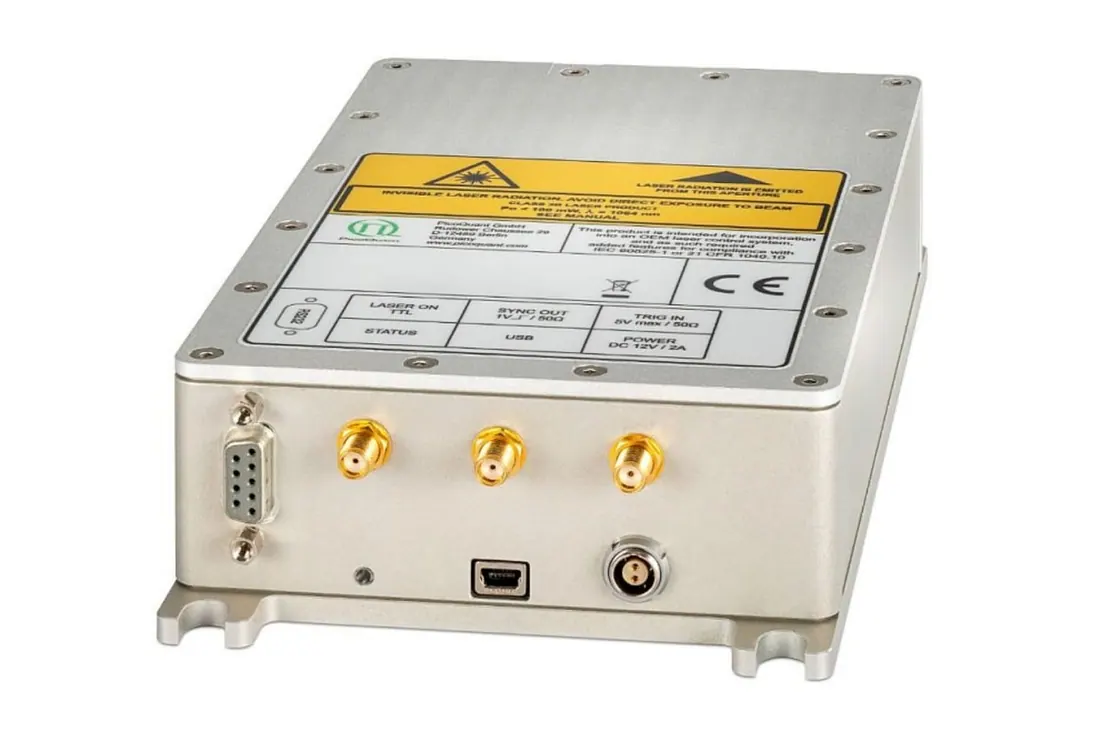

CPDL-S-F/FA Series
Brand: PicoQuant | Category: Nanotechnology
The CPDL-S-F/FA Series are compact picosecond diode laser modules with fibre output for integration into other equipment. The FC/APC receptacle takes single mode polarisation maintaining fibre with a built in optical isolator, and triggering runs from single shot to 100 MHz. They suit time-resolved and sensing work.
Technical Specifications
| Parameter | Value |
|---|---|
| Fiber receptacle | FC/APC, single mode PM fiber with built in optical isolator |
| Max reverse launched power | < 50 mW |
| External trigger frequency | single shot to 100 MHz |
| Internal PLL frequency range | 1 kHz to 100 MHz |
| Power input | 12 V (max. 18 V), current max. 1.7 A |
| Dimensions | 210 x 118 x 47.4 mm (l × w × h), net weight laser head 0.8 kg |
