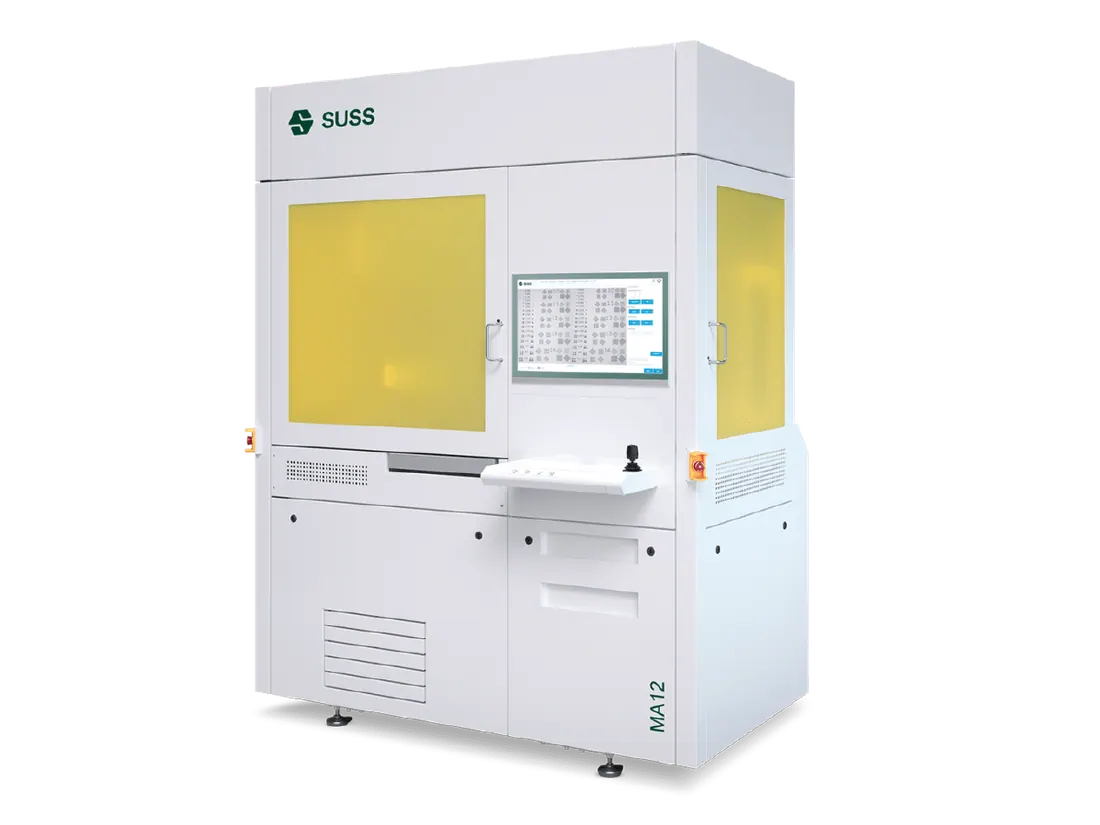

MA12 Gen3 Semi-Automated Mask Aligner and Imprint System
Brand: SUSS MicroTec | Category: Nanotechnology
A semi-automated mask aligner and imprint tool for wafers up to 300 mm. It combines full field UV exposure with SMILE imprint technology and a levelling system that measures the exposure gap in real time, covering MEMS, advanced packaging and research work.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate sizes | wafers up to 300 mm |
| Imprint | SMILE technology for standard to high-end imprint processes |
| Illumination | MO Exposure Optics with telecentric exposure |
| Levelling | real-time gap measurement for substrate parallelism |
| Light source | LED |
| Warped wafer support | vacuum chucks and proximity exposure modes |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about SUSS MicroTec equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
