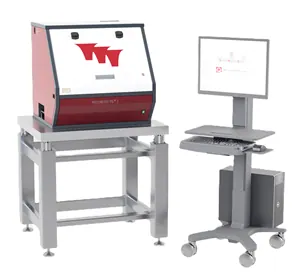

MicroWriter ML3 Pro
Brand: Durham Magneto Optics | Category: Nanotechnology
The top model in the MicroWriter ML3 family, supplied on a passive vibration isolation optical table. It writes over a 195 mm square area at four selectable resolutions and includes a virtual mask aligner mode and multiple wafer handling for overnight runs.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum writing area | 195 mm x 195 mm, 295 mm x 295 mm optional |
| Maximum wafer size | 230 mm x 230 mm x 15 mm, larger sizes optional |
| Minimum feature sizes | 0.6 um, 1 um, 2 um and 5 um, 0.4 um optional |
| Specification | 385 nm long life semiconductor light source, 365 nm and dual wavelength optional |
| Specification | XY interferometer with 1 nm resolution, 4 nm sample stage resolution |
| Alignment accuracy | plus or minus 0.5 um, 3 sigma |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Durham Magneto Optics equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
