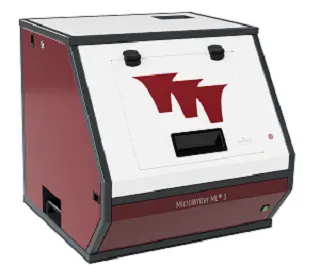

MicroWriter ML3 Mesa
Brand: Durham Magneto Optics | Category: Nanotechnology
A desktop direct write lithography machine offering three software selectable resolutions down to 0.6 um. It is used for microelectronics, spintronics, MEMS, sensors and microfluidics work where sub-micron critical features sit alongside coarse structures.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum writing area | 149 mm x 149 mm |
| Minimum feature sizes | 0.6 um, 1 um and 5 um across the full writing area |
| Writing speed | up to 15 mm2 per minute at 0.6 um and 180 mm2 per minute at 5 um |
| Alignment accuracy | plus or minus 1 um, 3 sigma |
| Specification | 30 nm minimum addressable grid, 15 nm sample stage resolution |
| External dimensions | 700 mm wide x 700 mm deep x 750 mm high, excluding computer |
