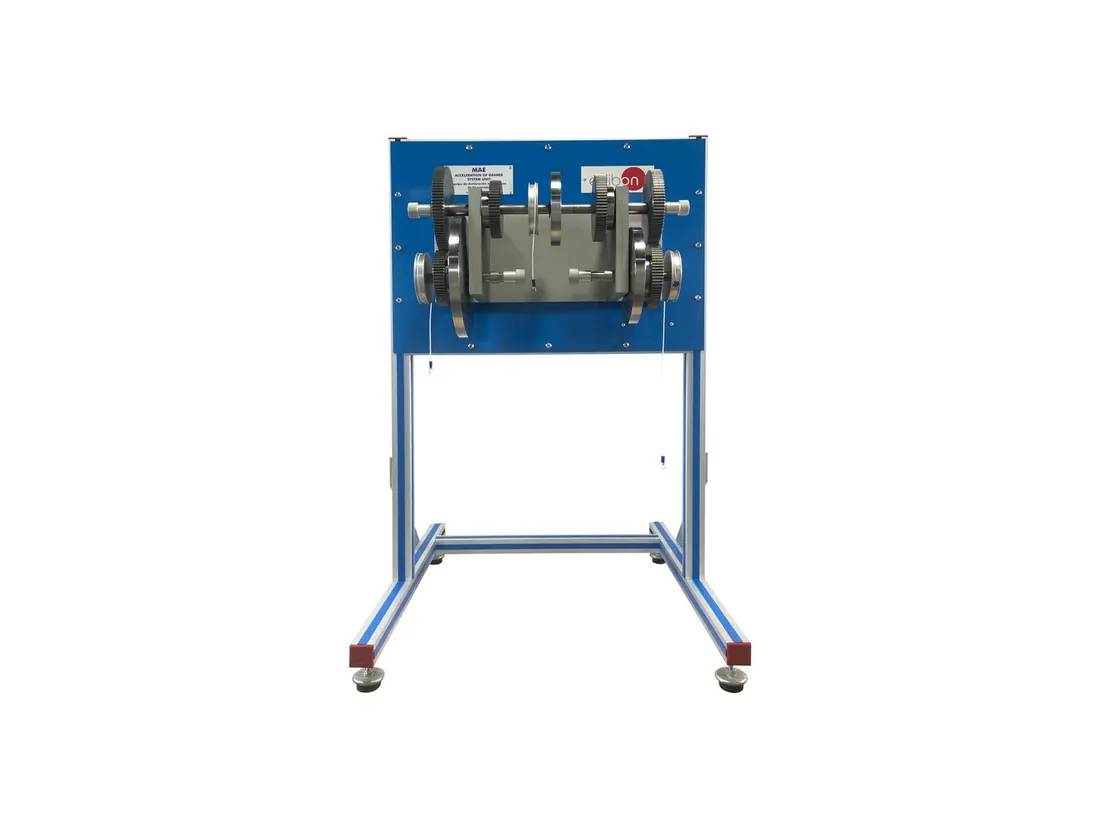

MAE: Acceleration of Geared System Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MAE is used to study the angular acceleration of a geared system driven by a falling weight. Students measure acceleration for different gear ratios and inertias and determine the equivalent inertia referred to the input shaft.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 600 x 800 x 650 mm approx |
| Weight | 25 Kg approx |
| Gear type 1 moment of inertia I | 0.00427 Kg·m² |
| Two gears type 2 moment of inertia I | 0.0011 Kg·m² |
| Two gears type 3 moment of inertia I | 0.00268 Kg·m² |
| Gear type 4 moment of inertia I | 0.00336 Kg·m² |
