MCDA: Combined Drives Assembly Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

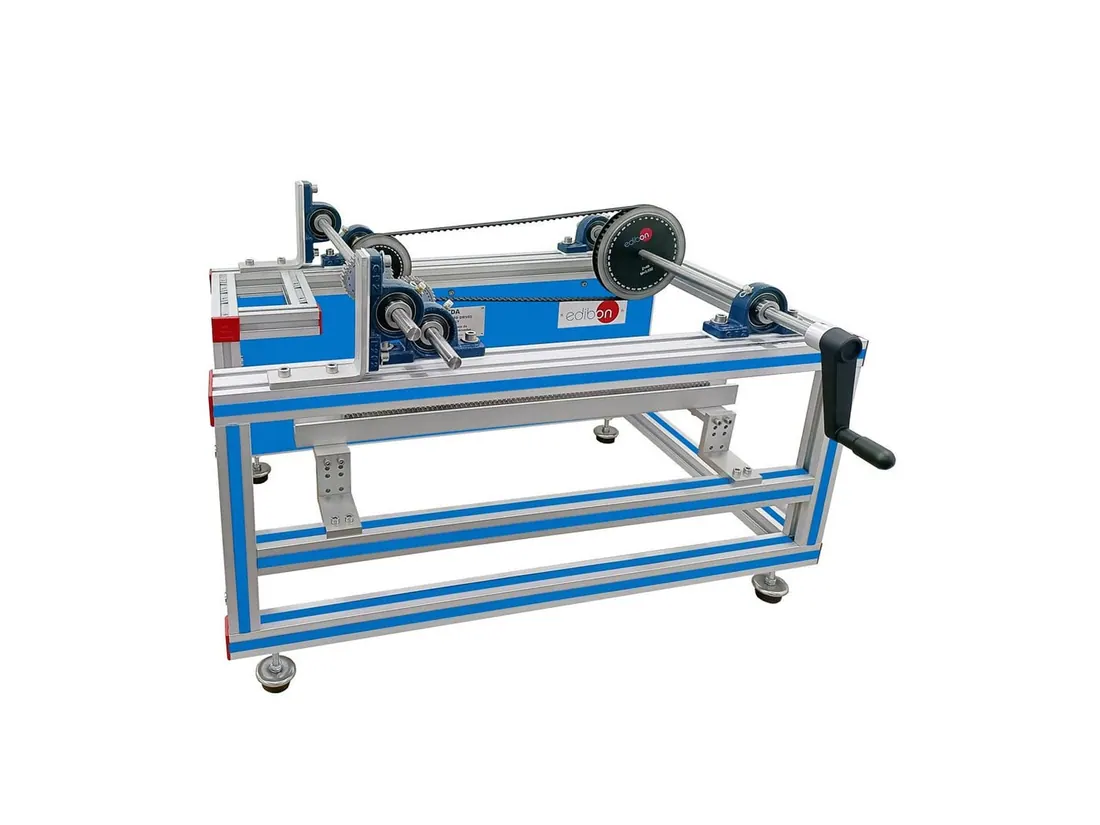

MCDA extends the simple drives kit to combined transmissions, where belt, chain and gear stages are assembled in series on a common frame. Students calculate and then verify the overall speed ratio and study the losses in each stage.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Simple spur gears module m= 2; number of teeth z= 30, 32, 40, 50, 60 |
| Specification | Simple spur gears module m= 1.5; number of teeth z= 32, 40, 44 |
| Specification | Bevel gear torque module m= 2; number of teeth z= 26 |
