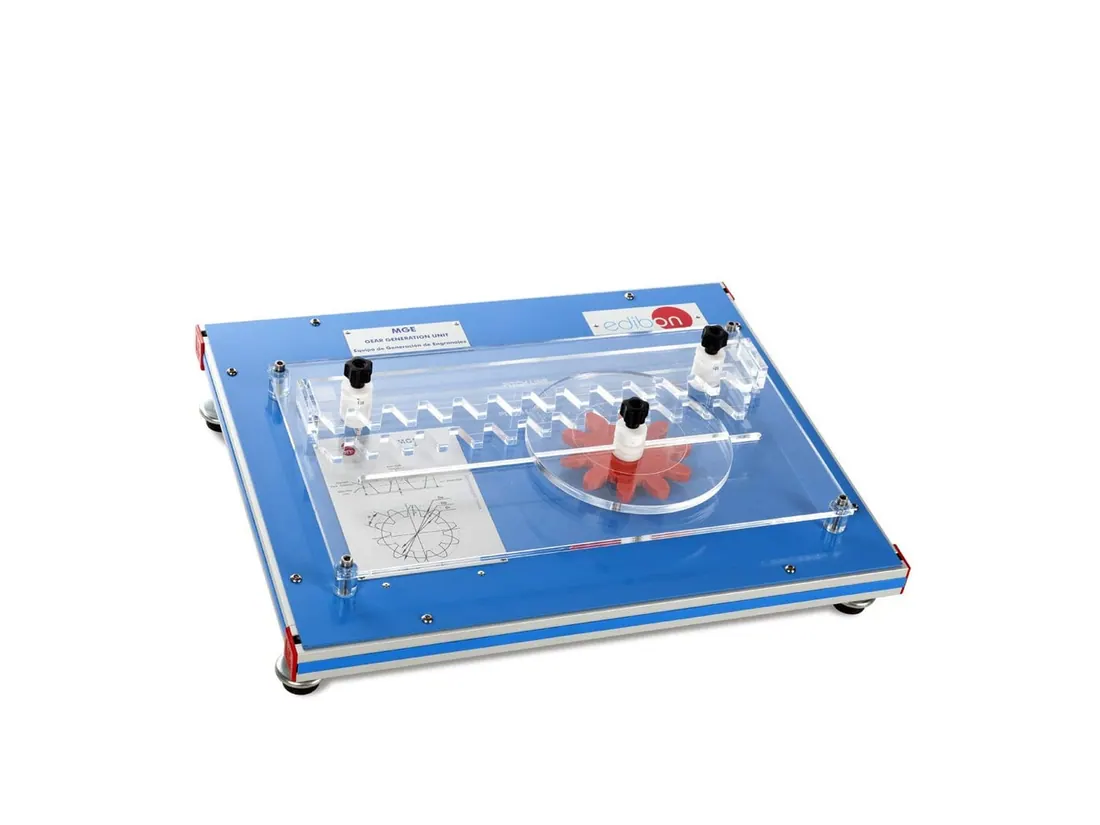

MGE: Gear Generation Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MGE demonstrates how involute gear teeth are generated by the rack cutter method. A paper disc is indexed under a rack template so the tooth profile is drawn step by step, showing undercutting and the effect of profile shift.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 600 x 450 x 150 mm approx |
| Weight | 7 Kg approx |
| Specification | Rack inverse of the module (Pd) = 0.091 mm |
| Specification | Rack length = 450 mm |
| Specification | Pinion module (m) = 11 mm |
| Specification | Pinion primitive diameter (Dp) = 110 mm |
