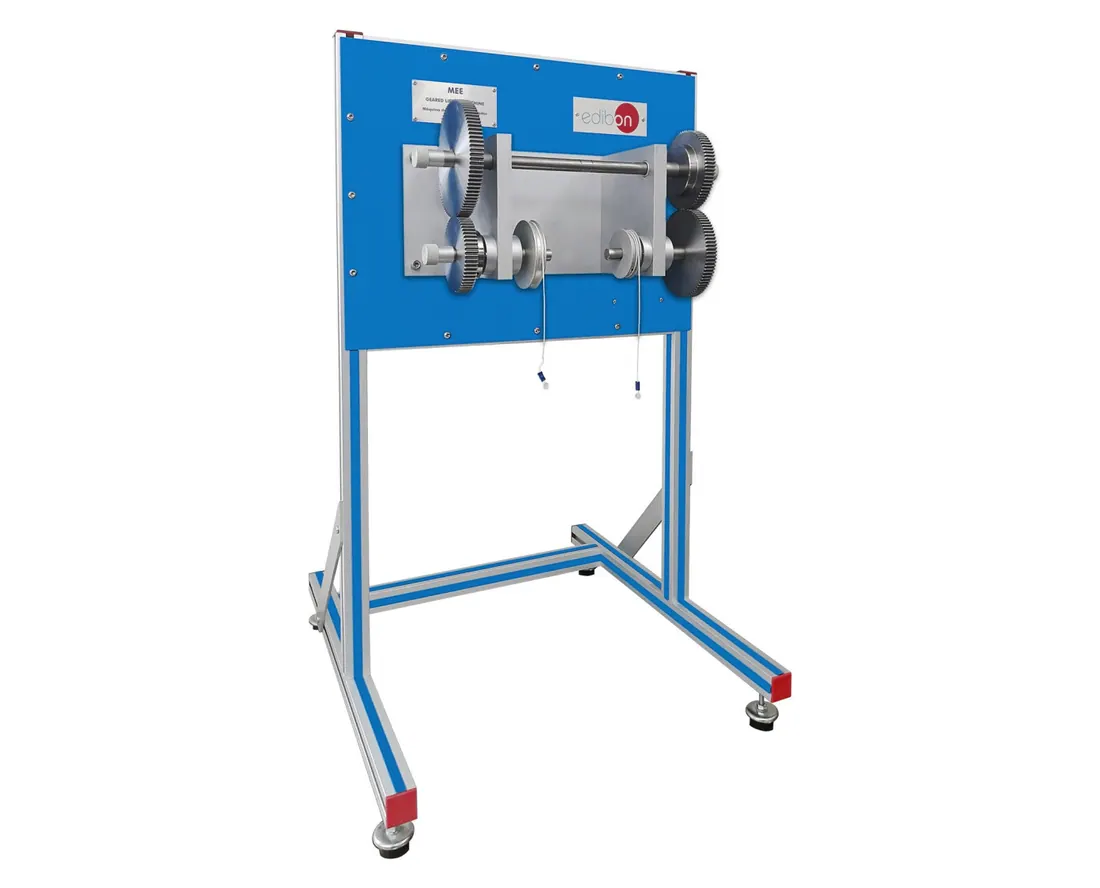

MEE: Geared Lifting Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MEE is a geared lifting model for studying hoists. Effort is applied to raise known loads so mechanical advantage, velocity ratio and efficiency can be measured and the law of the machine plotted from the results.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 600 x 650 x 950 mm approx |
| Weight | 25 Kg approx |
| Three shafts two lower shafts | Length: 0.15 m. Diameter: 0.016 m |
| Three shafts upper shafts | Length: 0.4 m. Diameter: 0.016 m |
| Pulley 1 | Diameter: 0.08 m |
| Pulley 2 | Diameter: 0.06 m |
