MBLU: Bar Linkages Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

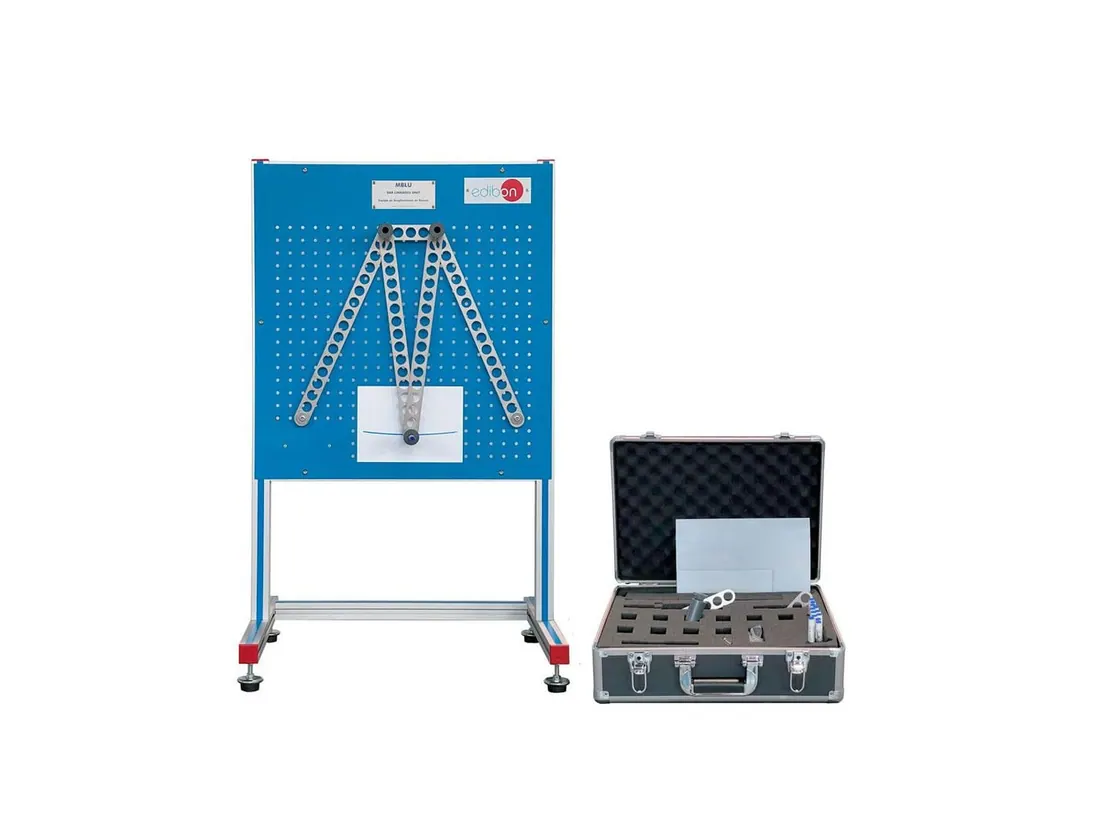

MBLU is a construction set of bars, pivots and sliders for assembling plane linkages. Students build and analyse different four bar and slider arrangements and trace coupler curves. It supports kinematics and mechanism design teaching.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 600 x 500 x 990 mm approx |
| Weight | 5 kg approx |
| Specification | Four bars with seventeen holes |
| Specification | Six bars with thirteen holes |
