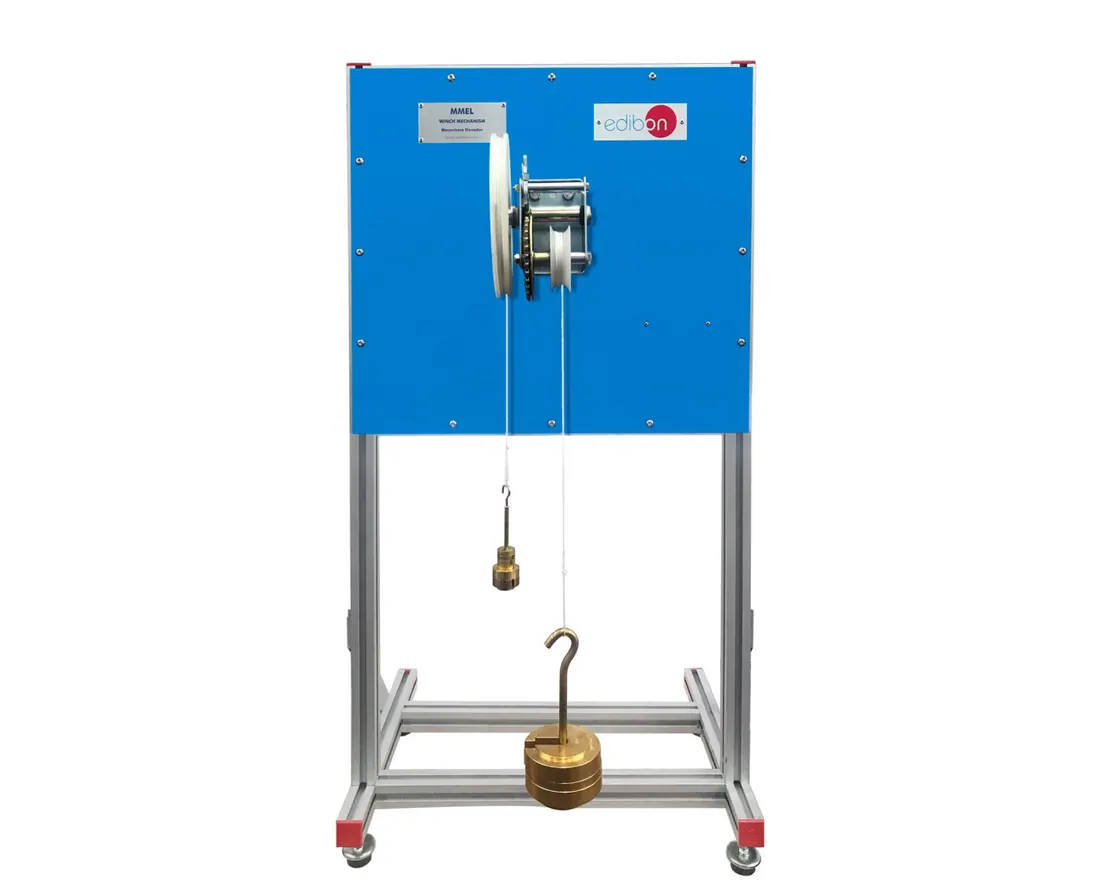

MMEL: Winch Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MMEL is a geared winch model for studying lifting machines. Effort and load are measured while the winch raises known weights, giving velocity ratio, mechanical advantage and efficiency, and allowing the law of the machine to be plotted.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 400 x 450 x 850 mm approx |
| Weight | 30 Kg approx |
| Pulleys driving pulley, diameter ext | 200 mm |
| Pulleys driven pulley, diameter ext | 80 mm |
