MDA: Ackermann Steering Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment

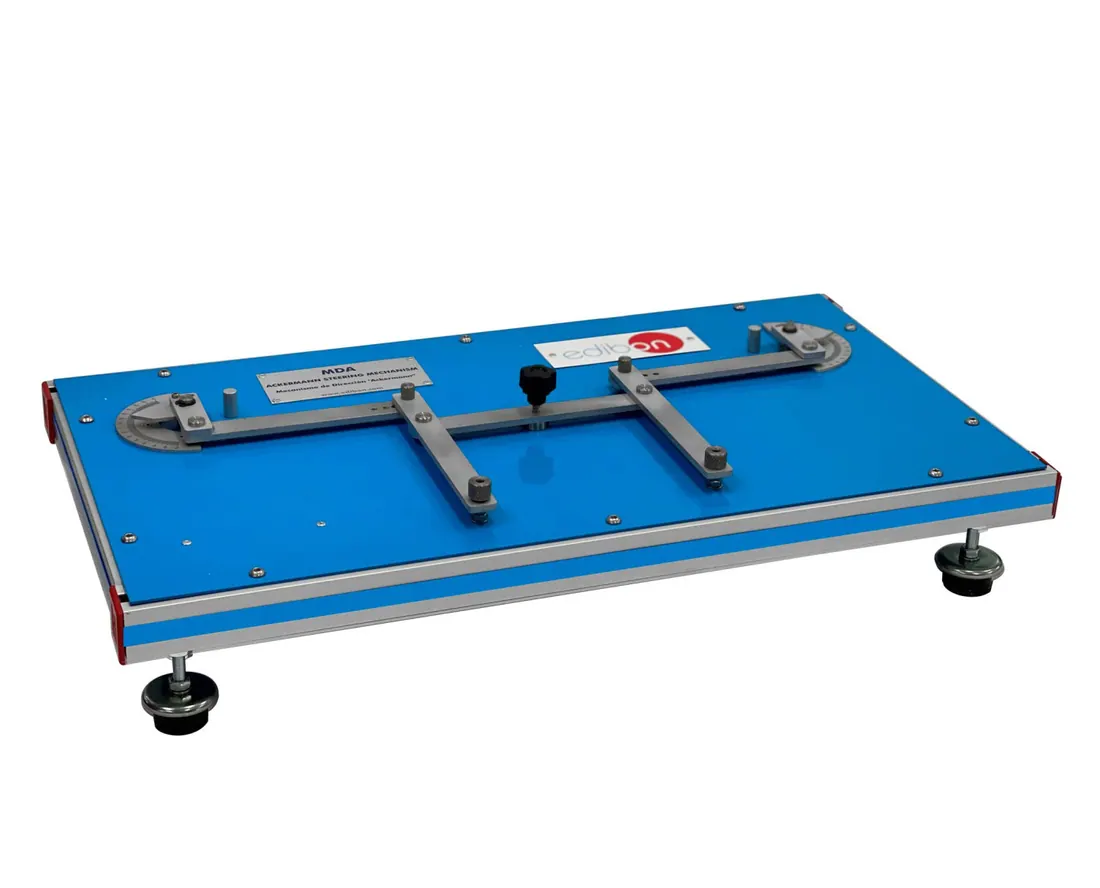

MDA is a model of the Ackermann steering linkage used on road vehicles. Steering angles of the inner and outer wheels are read on graduated scales so students can check the geometric condition for correct cornering and study steering error.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 660 x 360 x 100 mm approx |
| Weight | 5 Kg approx |
| Two pivots. Space between pivots | 480 mm approx |
