MBI: Crank Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment

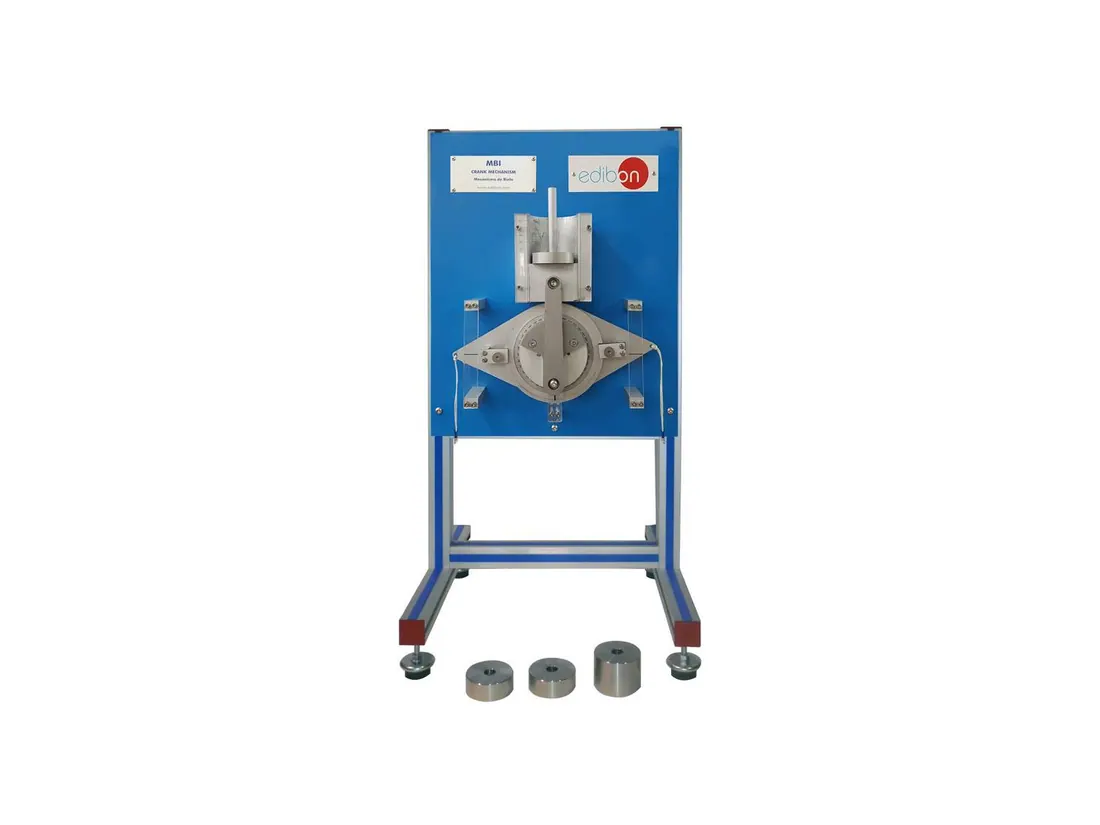

MBI demonstrates the basic crank and connecting rod arrangement. Students measure piston displacement against crank angle and study the effect of connecting rod length on the resulting motion. It supports engine kinematics teaching.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 400 x 750 x 500 mm approx |
| Weight | 20 Kg approx |
| Piston and guide with graduated scale | piston stroke: 70 mm |
| Specification | Mass of 1 Kg 1 unit |
| Specification | Mass of 0.5 Kg 2 units |
