MEX: Cam and Follower Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment

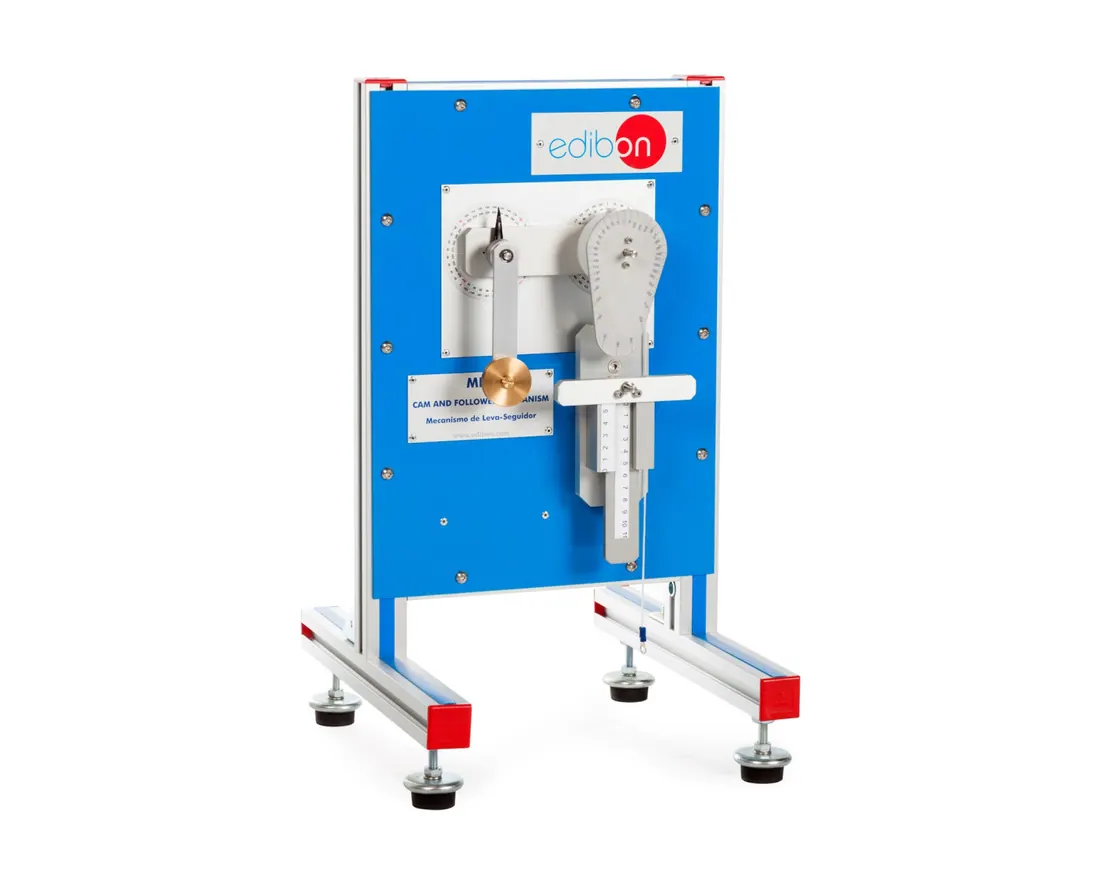

MEX is used to plot the displacement diagrams of cams. Interchangeable cam profiles and follower types are fitted and follower lift is measured against cam angle with a dial gauge. Students compare measured profiles with the theoretical curves.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 370 x 400 x 510 mm approx |
| Weight | 10 kg approx |
| Specification | In order to carry out some of the practices with "MEX" unit 1 set of weights "B type"is recommened |
