MUN: Hooke's Joint Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment

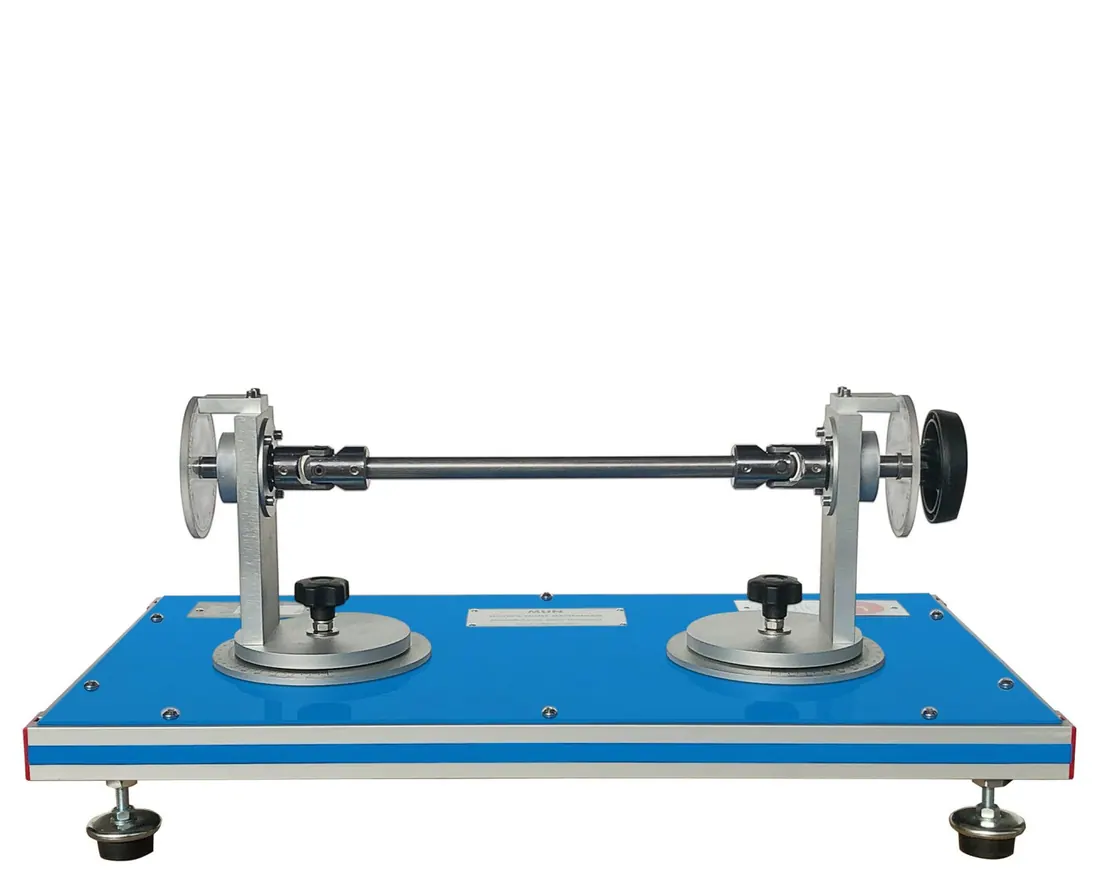

MUN is a demonstration unit for the Hooke universal joint. Input and output shaft angles are read on graduated dials at different shaft inclinations, so the cyclic velocity fluctuation of a single joint and its cancellation in a double joint can be measured.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 660 x 360 x 300 mm approx |
| Weight | 3 kg approx |
| Specification | Two universal couplings (cardan joints) |
| Specification | Intermediate shaft made of stainless steel |
