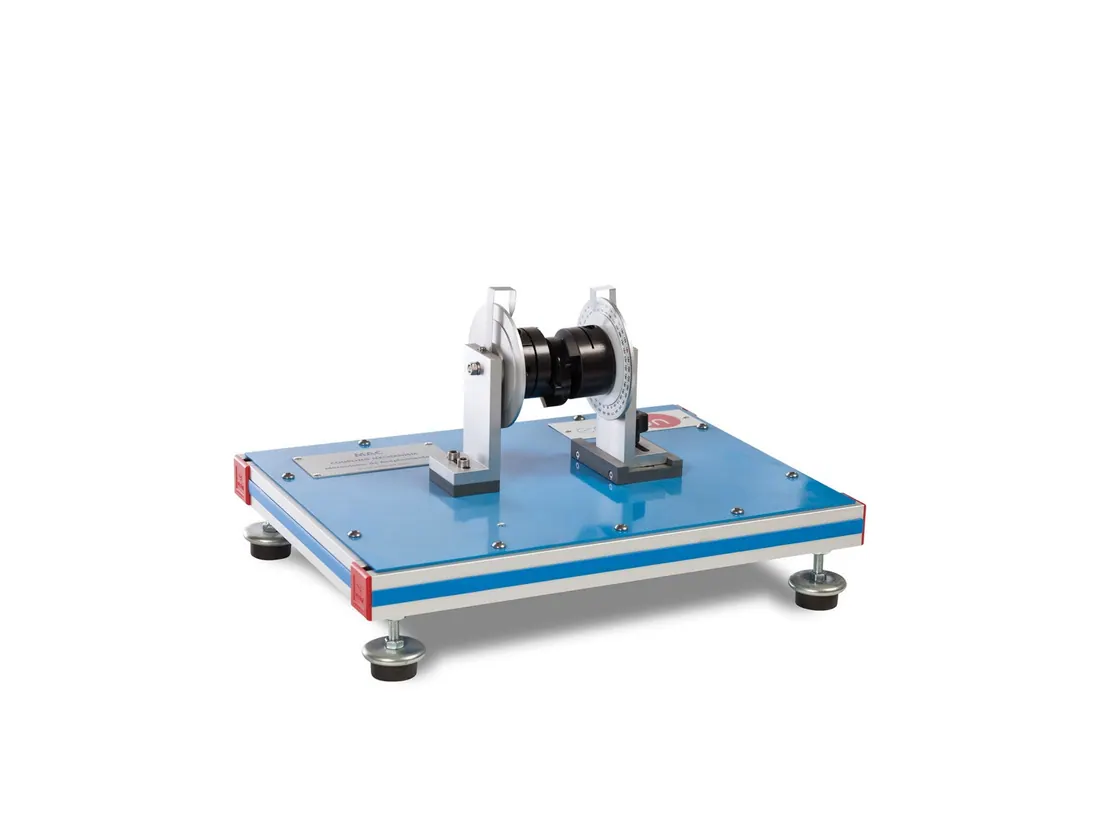

MAC: Coupling Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MAC lets students study shaft couplings and the effect of misalignment. Different coupling types can be fitted between two shafts so the transmission of angular motion under aligned and misaligned conditions can be compared.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 450 x 250 x 200 mm approx |
| Weight | 2 Kg approx |
| Specification | Two outer discs made of aluminum |
| Specification | Central disc made of acetal, located between both outer discs |
