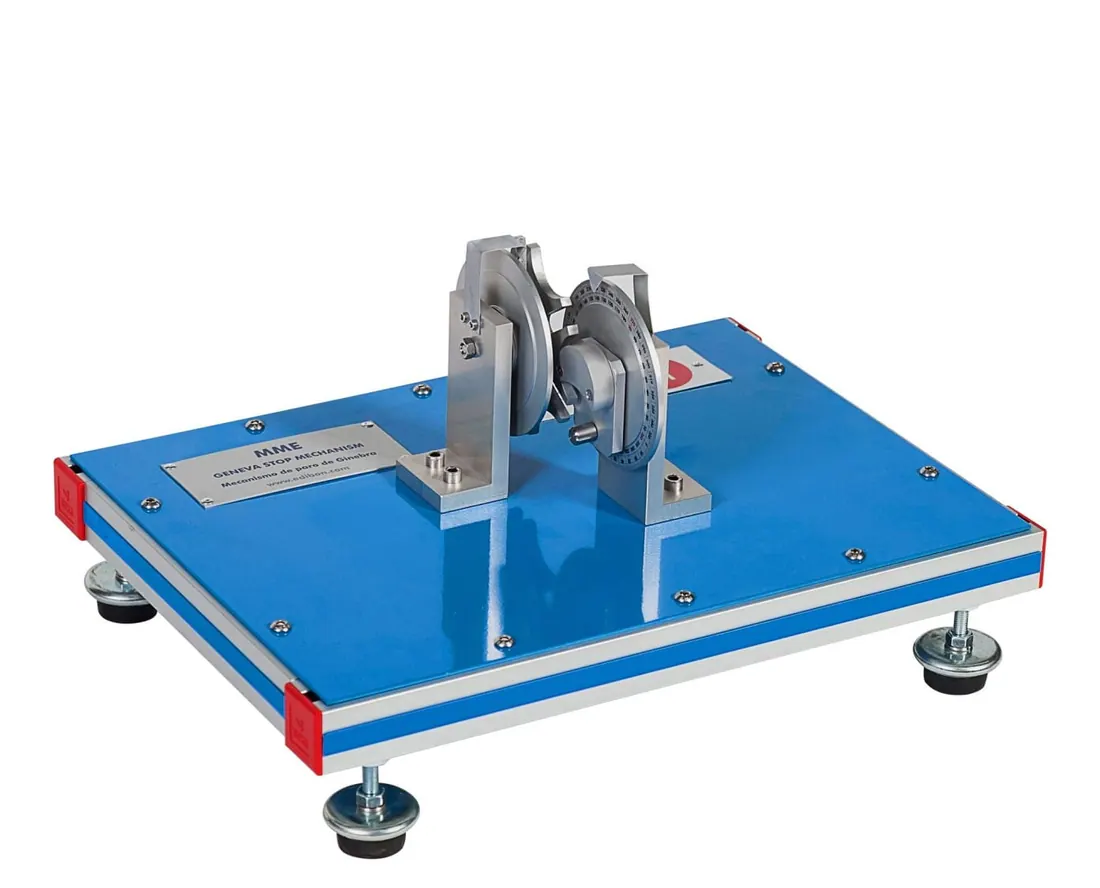

MME: Geneva Stop Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MME demonstrates the Geneva stop, an intermittent motion mechanism used for indexing. A driving pin engages the slots of a Geneva wheel so students can observe dwell and index periods and measure the angular relationship between driver and follower.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 400 x 300 x 160 mm approx |
| Weight | 3 Kg approx |
| Specification | Rotating drive wheel with a pin and a raise half-moon blocking disc |
| Specification | Driven wheel with six slots |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
