MCA: Four-Bar Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment

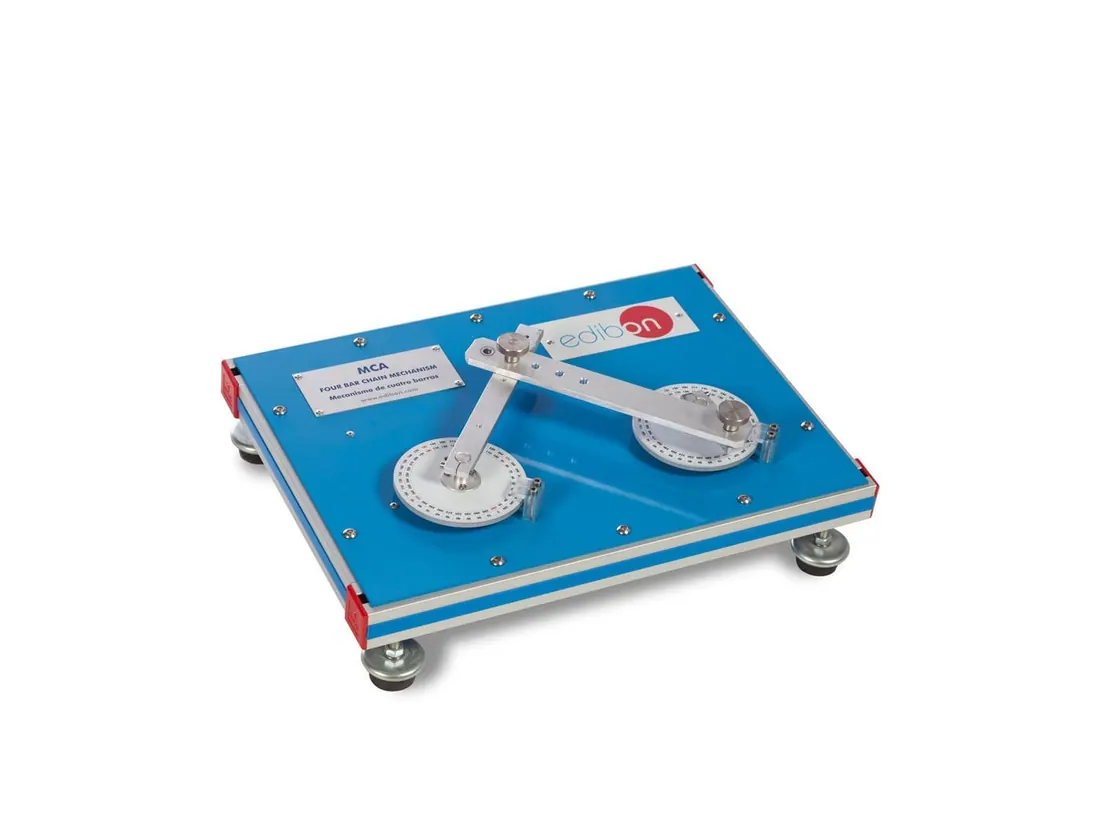

MCA is an adjustable four bar linkage for studying plane kinematics. Link lengths can be changed to obtain crank rocker, double crank and double rocker arrangements, and input and output angles are read on graduated scales.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 450 x 250 x 150 mm approx |
| Weight | 2 Kg approx |
| Specification | The bars, made of |
| Specification | Two graduated discs mounted on ball bearings |
