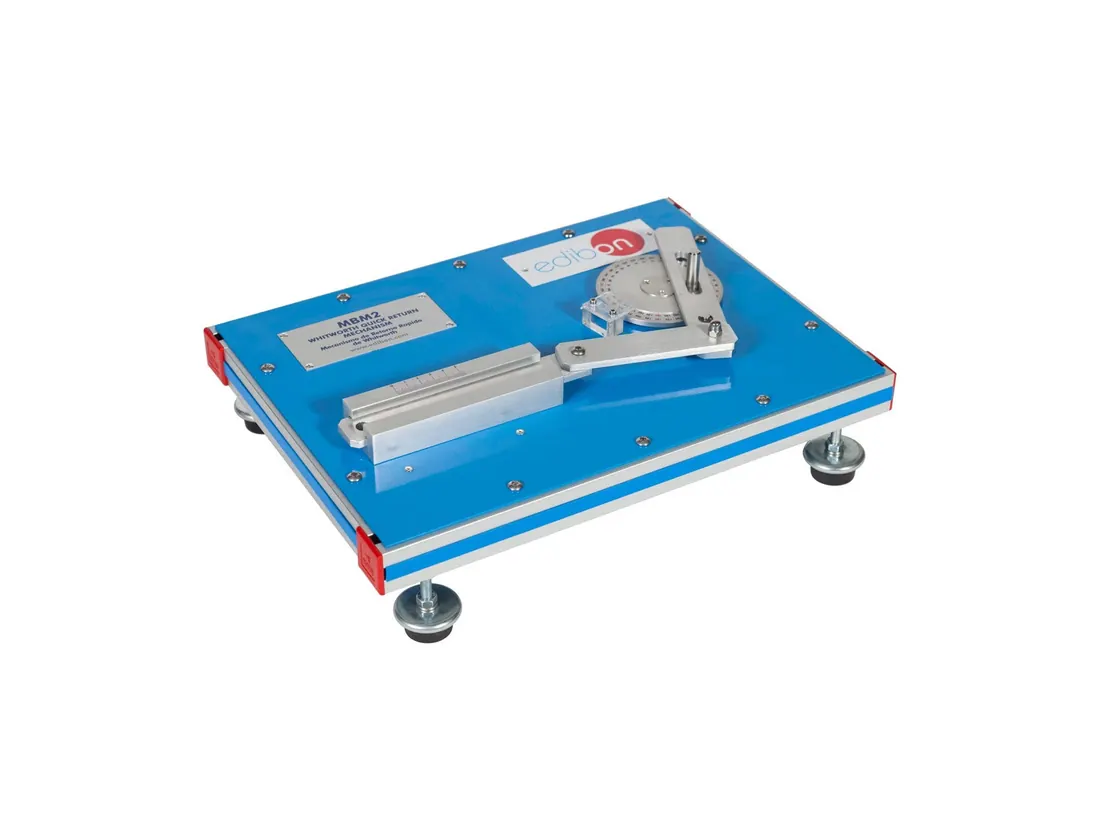

MBM2: Whitworth Quick Return Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MBM2 is a model of the Whitworth quick return mechanism used in shaping and slotting machines. Rotating the crank drives the ram through a slotted link, so the quick return ratio and the ram displacement diagram can be obtained.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 400 x 300 x 100 mm approx |
| Weight | 3 Kg approx |
| Specification | Rotary element (crank) with an indicator and graduated disc to read the angle |
| Specification | Rigid bar (connecting rod) with a millimeter scale to measure the linear motion |
