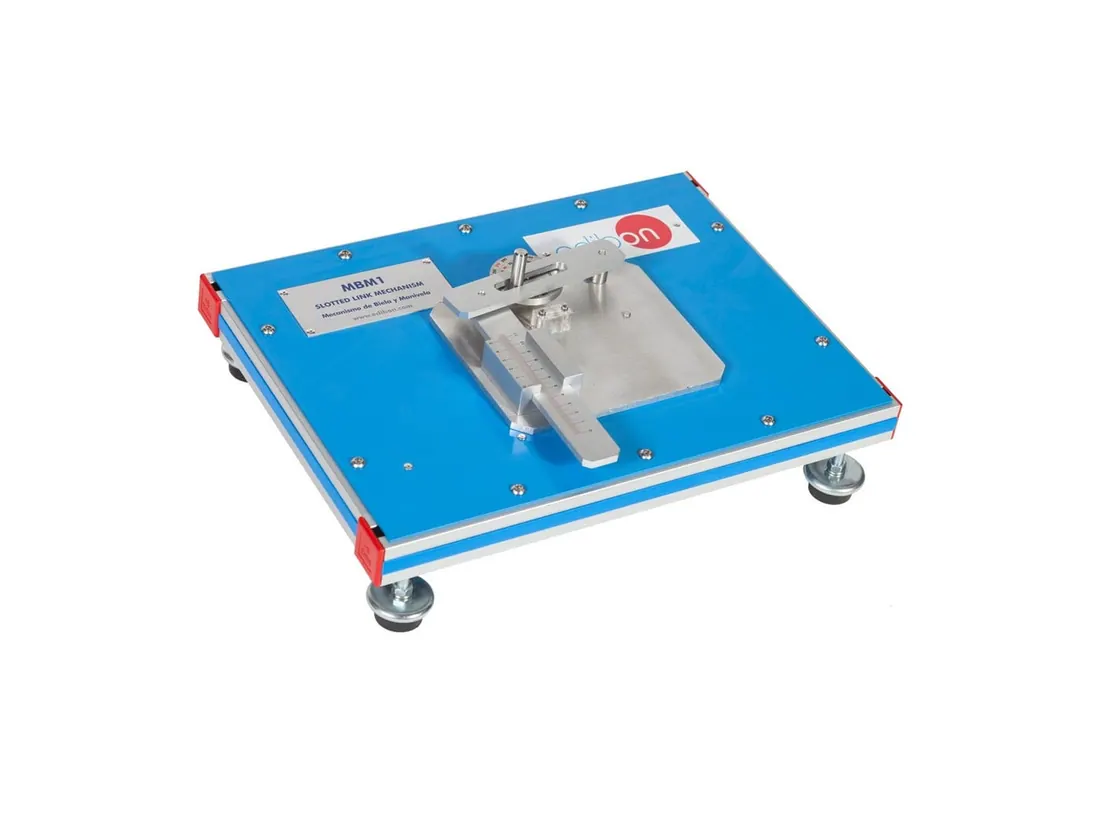

MBM1: Slotted Link Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MBM1 demonstrates the slotted link quick return mechanism used on shaping machines. The crank drives a pivoted slotted lever so students can measure the ratio between cutting and return stroke times and plot ram displacement against crank angle.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 400 x 300 x 100 mm approx |
| Weight | 3 Kg approx |
| Specification | Rotary element (crank) with a graduated disc and an indicator to read the angle |
| Specification | Rigid bar (connecting rod) with a millimeter scale to measure the linear motion |
