MYE: Scotch Yoke Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment

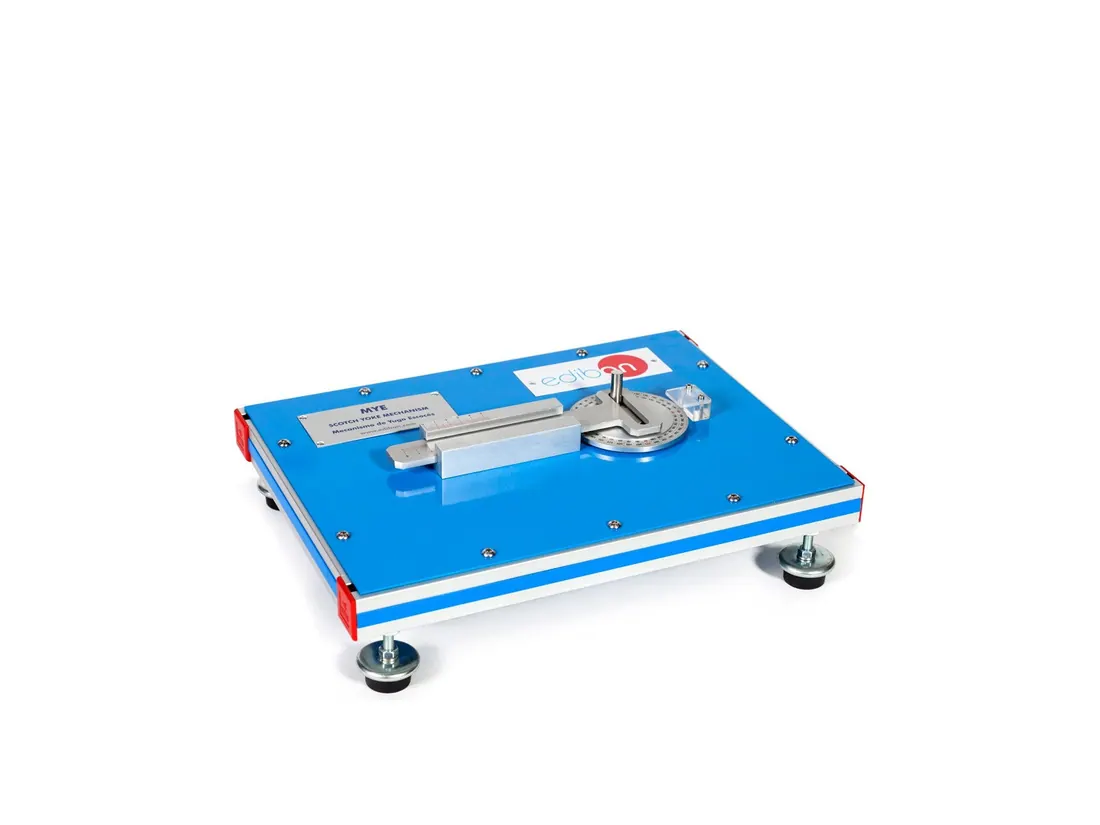

MYE demonstrates the Scotch yoke, a mechanism that converts rotation into pure simple harmonic linear motion. Students record slider displacement against crank angle and compare the measured trace with the sine curve predicted by theory.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 400 x 300 x 100 mm approx |
| Weight | 2 Kg approx |
| Specification | Rotary element (crank) with a graduated disc to read the angle |
| Specification | Piston with a millimeter scale to measure the linear motion |
