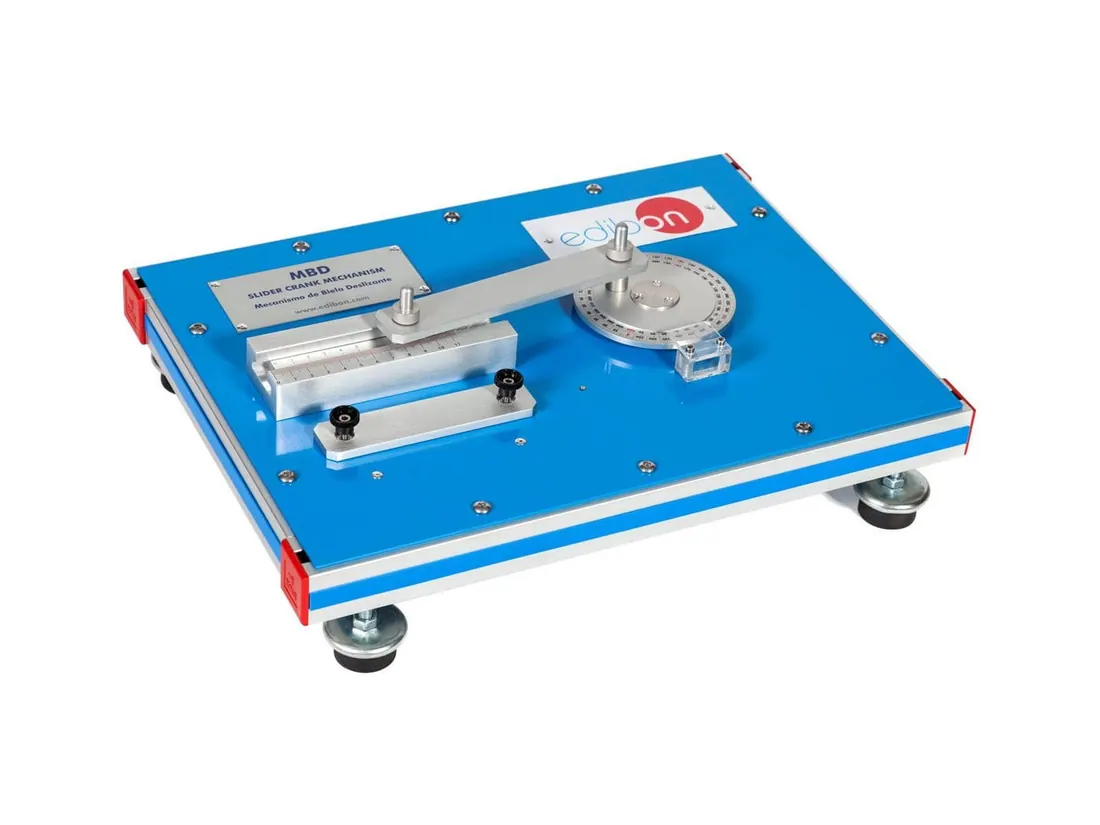

MBD: Slider Crank Mechanism
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MBD is a demonstration unit for the slider crank mechanism used in engines and compressors. Turning the crank moves a slider in a guide so displacement, velocity and acceleration of the slider can be plotted against crank angle. Stroke can be changed on the crank.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 400 x 300 x 100 mm approx |
| Weight | 3 Kg approx |
| Specification | Rotary element (crank) with a graduated disc and indicator to read the angle |
| Specification | Rigid bar with a millimeter scale to measure the linear motion |
