MEER: Whirling of Shafts Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment

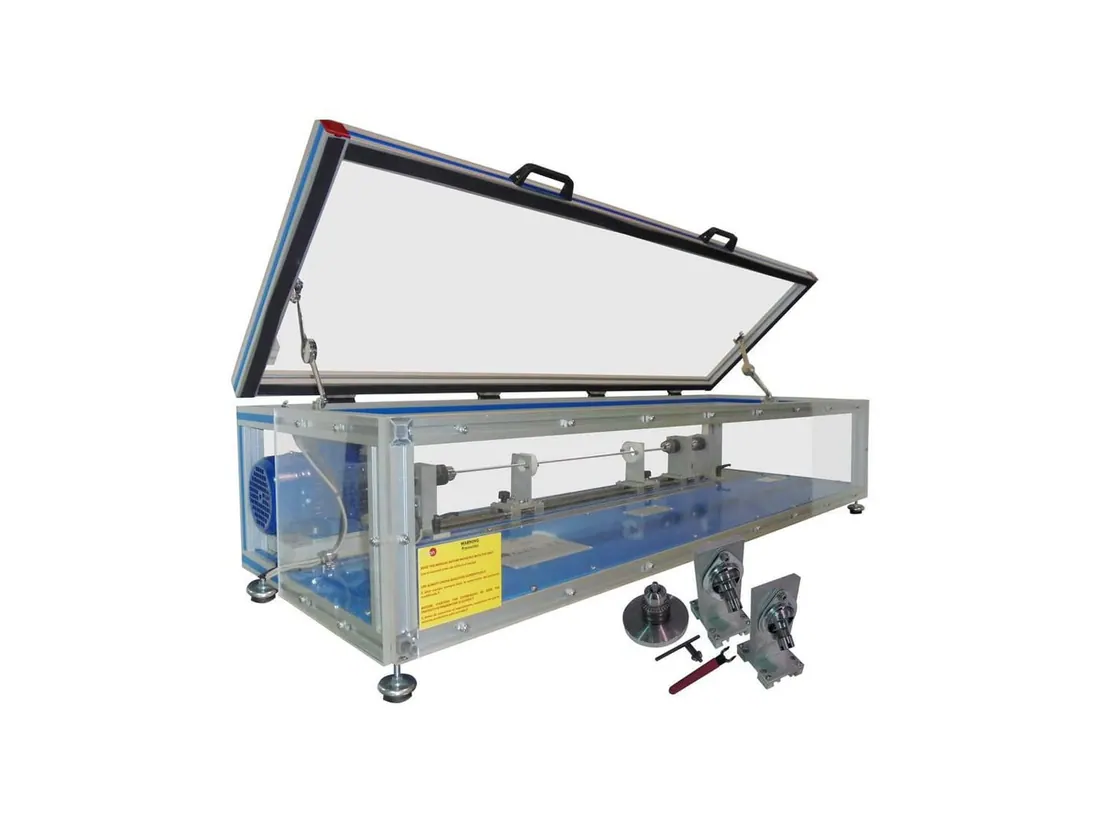

MEER is used to observe the whirling of rotating shafts. Shafts of different diameter and end fixing are run up to and through their critical speed so the first and higher whirl modes can be seen and the speeds recorded.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1600 x 500 x 600 mm approx |
| Weight | 60 Kg approx |
| Speed | 0 to 6000 rpm |
| Diameters | 3 mm, 6 mm, 7 mm |
| Length | 950 mm |
| Diameter | 100 mm |
