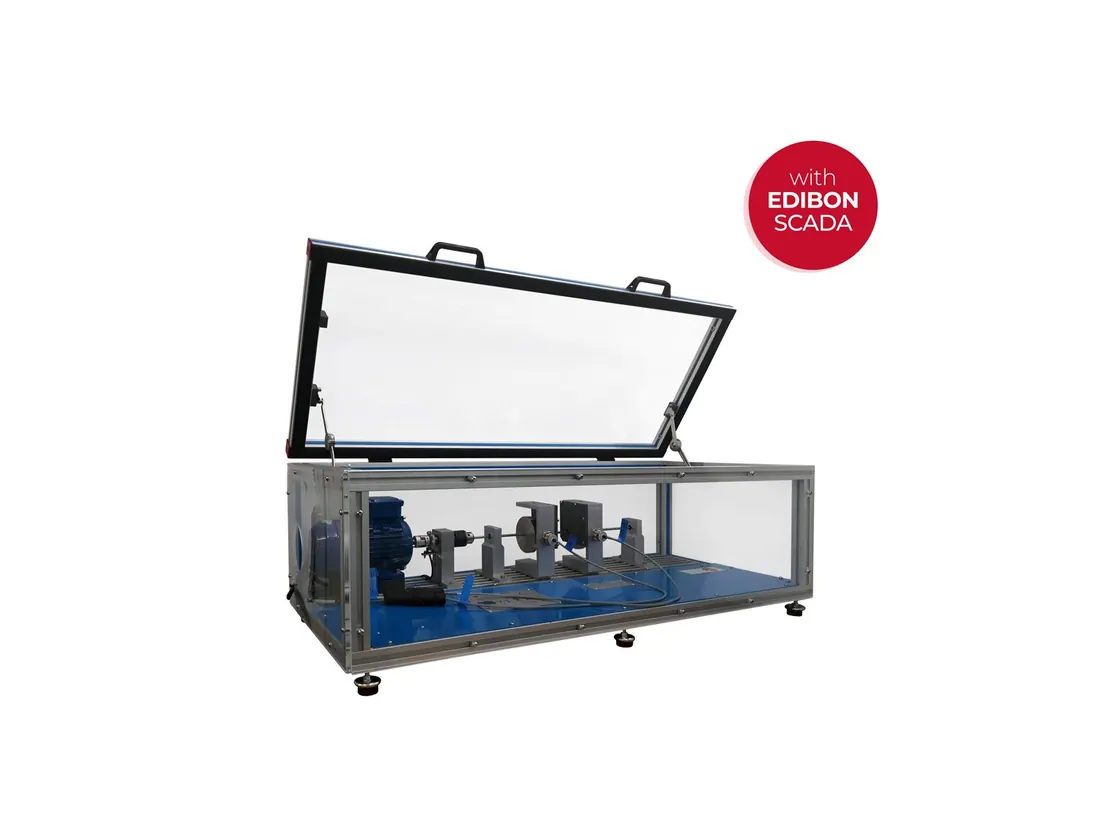

MVCC: Computer Controlled Critical Speed Investigation Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MVCC is a computer controlled rig for finding the critical speed of rotating shafts. Shaft speed is ramped through resonance while deflection is recorded, so measured whirling speeds can be compared with calculated values for different shaft supports.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1210 x 400 x 530 mm approx |
| Weight | 40 Kg approx |
| Speed | 0 to 3000 r.p.m |
| Stainless steel shaft diameter | 5 mm |
| Stainless steel shaft length | 600 mm |
| Stainless steel shaft diameter | 80 mm |
