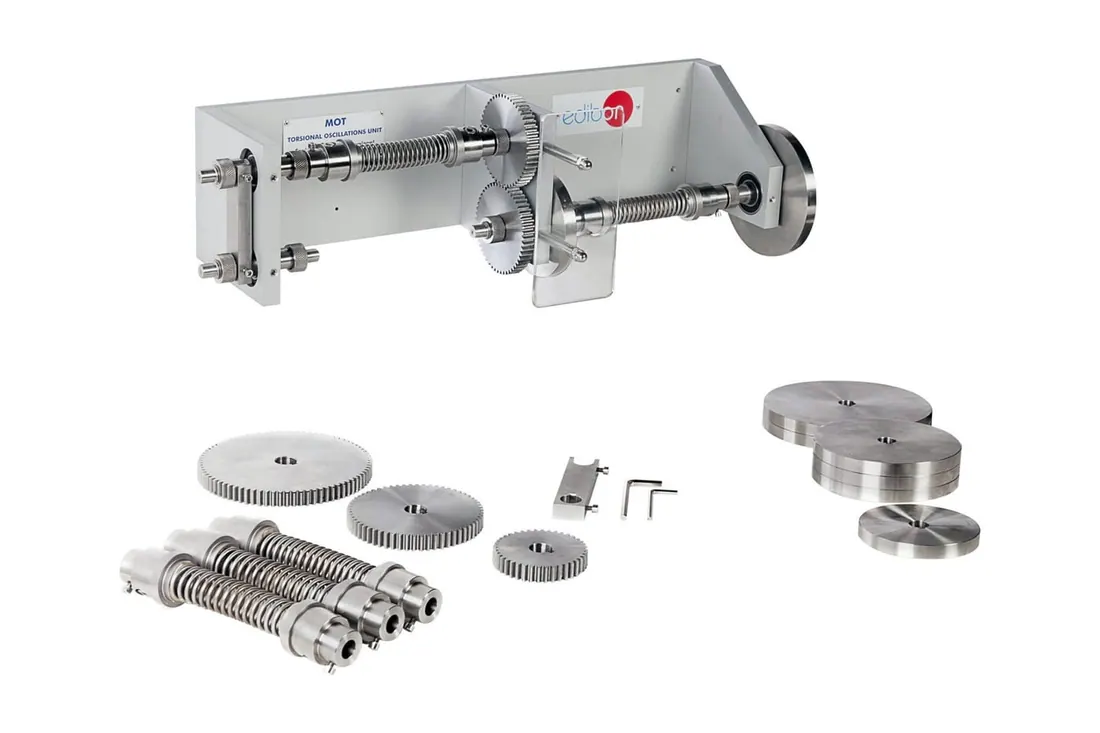

MOT: Torsional Oscillations Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MOT is used to study the torsional oscillation of discs on shafts. Students measure the period for single and two rotor systems, locate the position of the node and obtain the modulus of rigidity of the shaft material.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 700 x 400 x 300 mm approx |
| Weight | 30 kg approx |
| Specification | Two springs of 2 Nm/rad (approx.) |
| Specification | Two springs of 8 Nm/rad (approx.) |
| Specification | Two springs of 24 Nm/rad (approx.) |
| Specification | Two discs of 200 mm of diameter |
