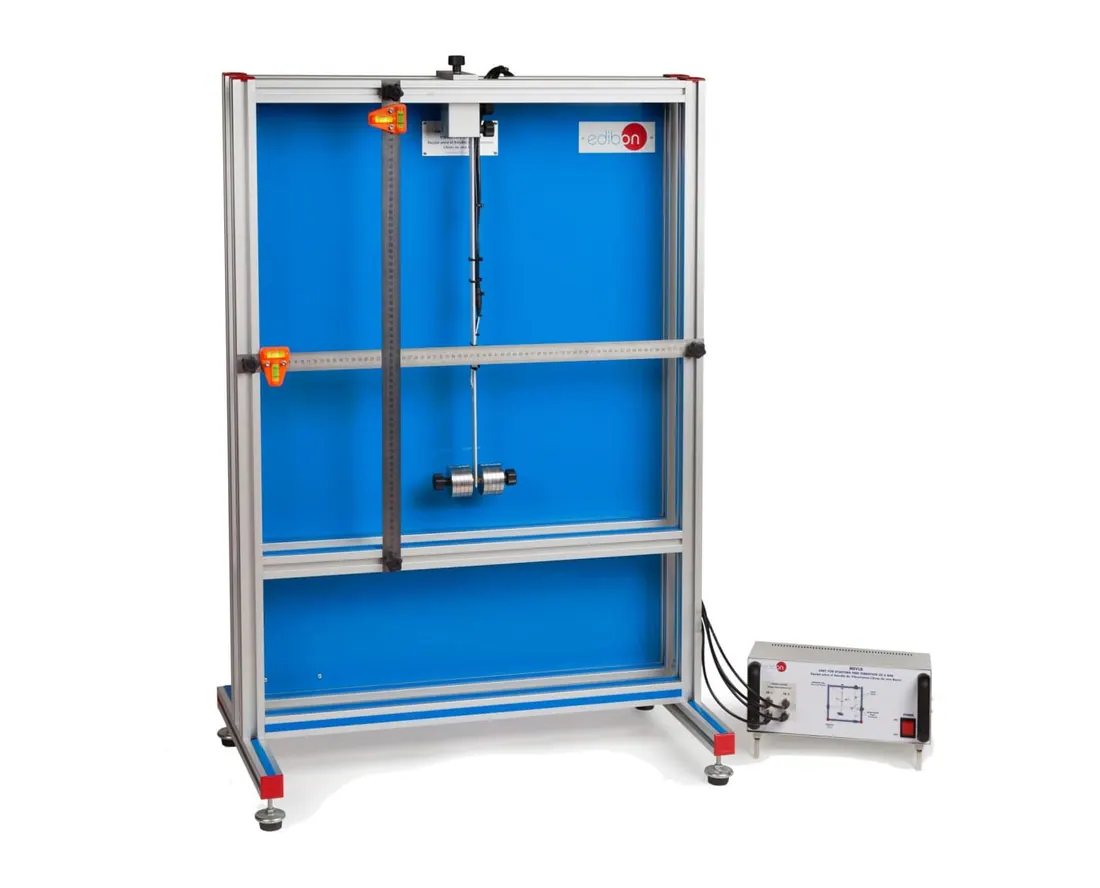

MEVLB: Unit for Studying Free Vibration of a Bar
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MEVLB is used to study the free vibration of a rigid bar supported by springs. Students vary the spring position and the added mass, measure the resulting natural frequency and compare it with the calculated value.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 750 x 400 x 1050 mm approx |
| Weight | 15 Kg approx |
| Bending test bar length | 650 mm |
| Bending test bar section | 20 x 3 mm |
| Specification | Two strain gauges of 120 attached to the bar by a Wheatstone half-bridge configuration |
| Bending test bar range of maximum amplitudes | ± 150 mm |
