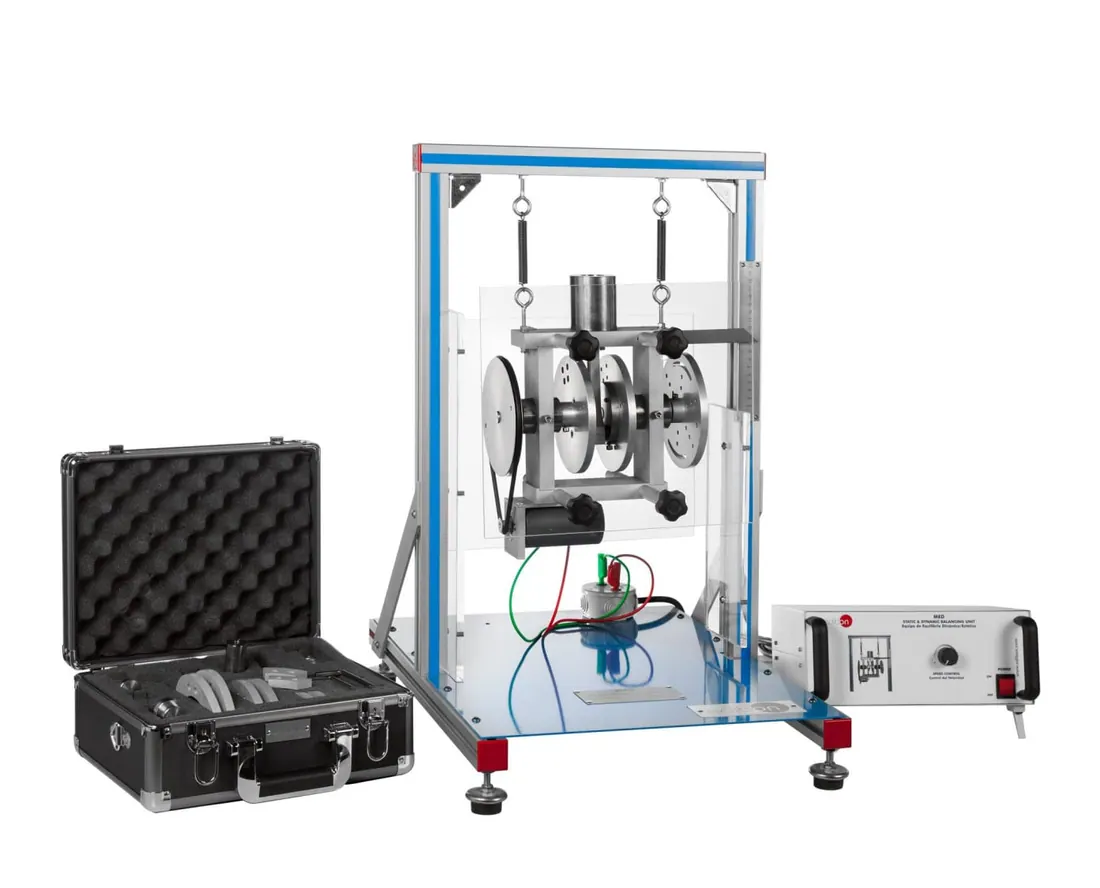

MED: Static and Dynamic Balancing Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MED is used to balance rotating masses on a shaft. Weights are set at chosen angular and axial positions and the shaft is run in flexible bearings, so students can find the balancing mass and angle for both static and dynamic balance.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 450 x 550 x 600 mm approx |
| Weight | 30 kg approx |
| Specification | Electrical motor with variable speed which can reach up to 8300 rpm |
| Specification | Two balancing discs. They are made of aluminum and have a diameter of 150 mm |
| Specification | Aluminum external disc, that we will name graduated disc. It has a diameter of 150 mm |
