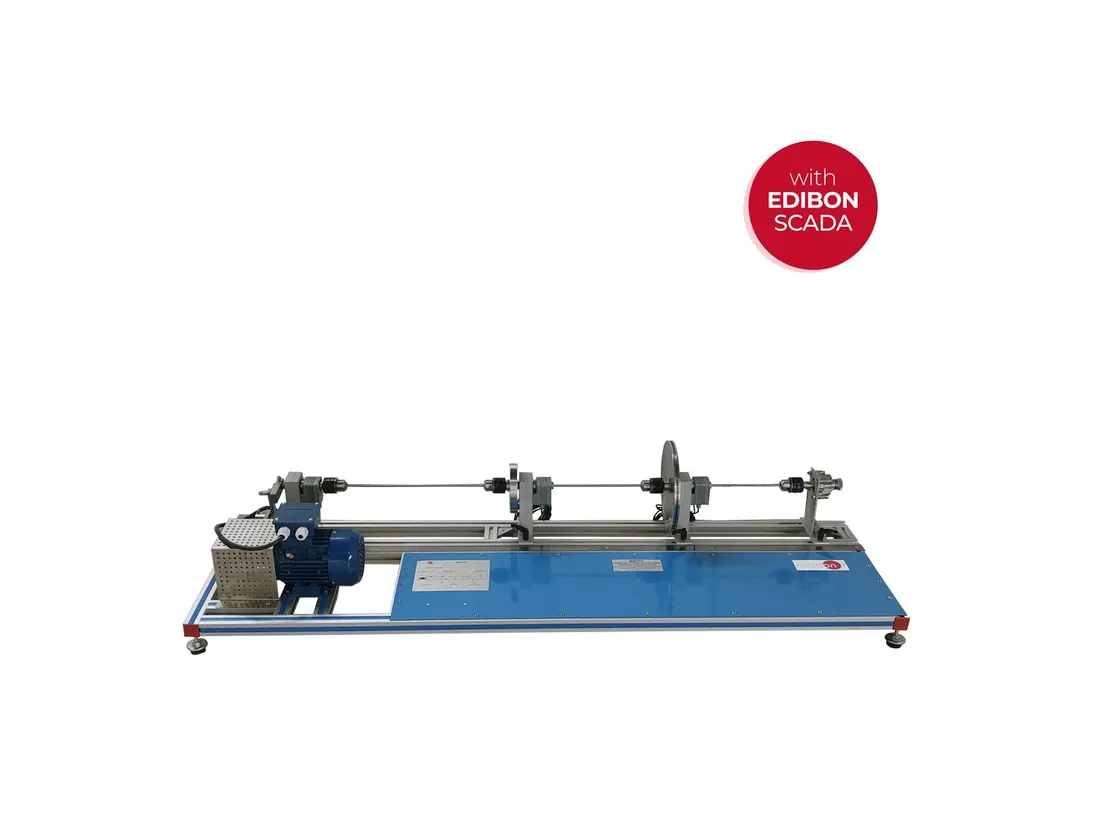

MEVTC: Computer Controlled Torsional Vibration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MEVTC is a computer controlled unit for studying torsional vibration of shafts and rotor systems. Free and forced torsional oscillations are excited and the response is recorded through the data acquisition system, giving natural frequencies and damping.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1650 x 500 x 400 mm approx |
| Weight | 55 Kg approx |
| Specification | Computer controlled three-phase motor of 0.5 kW |
| Torsion bar diameter | 6 mm |
| Torsion bar length | 1400 mm |
| Three discs of inertia disc 1 (2 units) | diameter of 150 mm and mass of 2.6 kg. Moment of inertia I = 0.00731 kg·m² |
