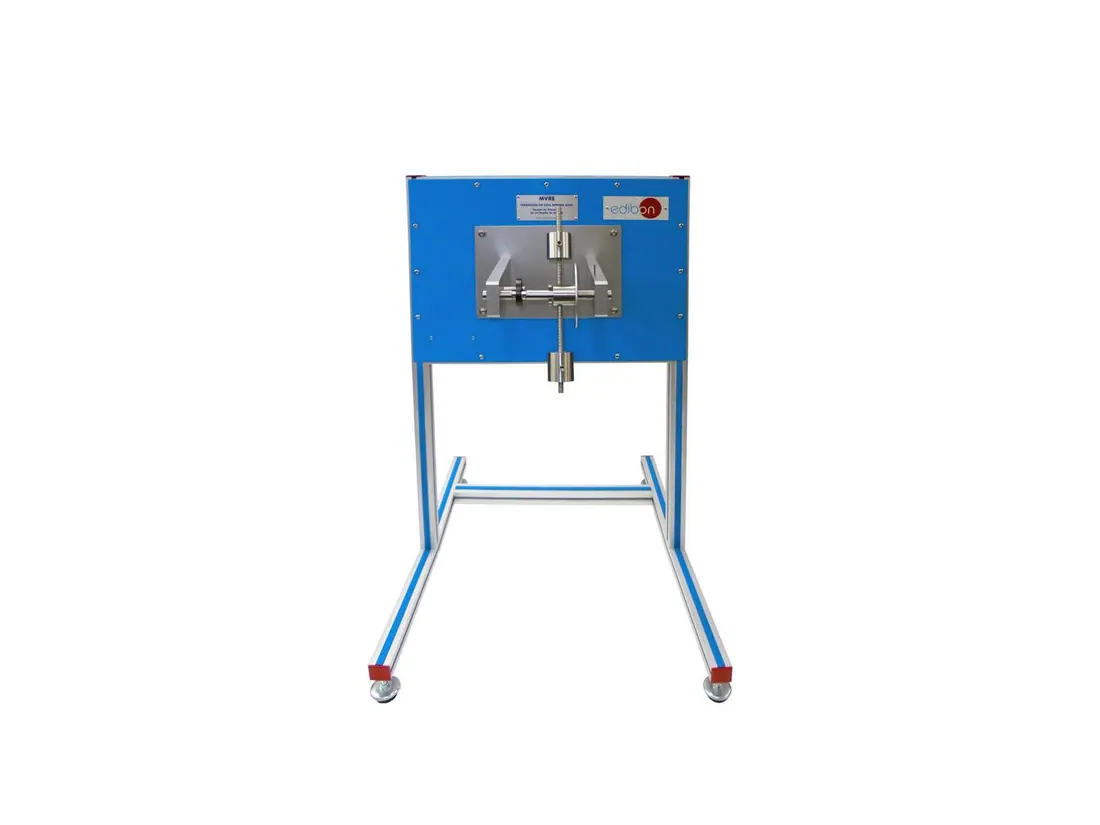

MVRE: Spiral Torsion Spring Vibration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MVRE is used to study the torsional oscillation of a mass supported by a spiral spring. Students measure the period of oscillation for different inertias and spring stiffnesses and compare the measured values with theory.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 500 x 400 x 800 mm approx |
| Weight | 12 Kg approx |
| Coil spring section | 8 x 0.5 mm |
| Coil spring external diameter | 18 mm |
| Coil spring inside diameter | 57 mm |
| Adjustable distance from the center of gravity of the weight to the rotation axis | 42 to 150 mm |
