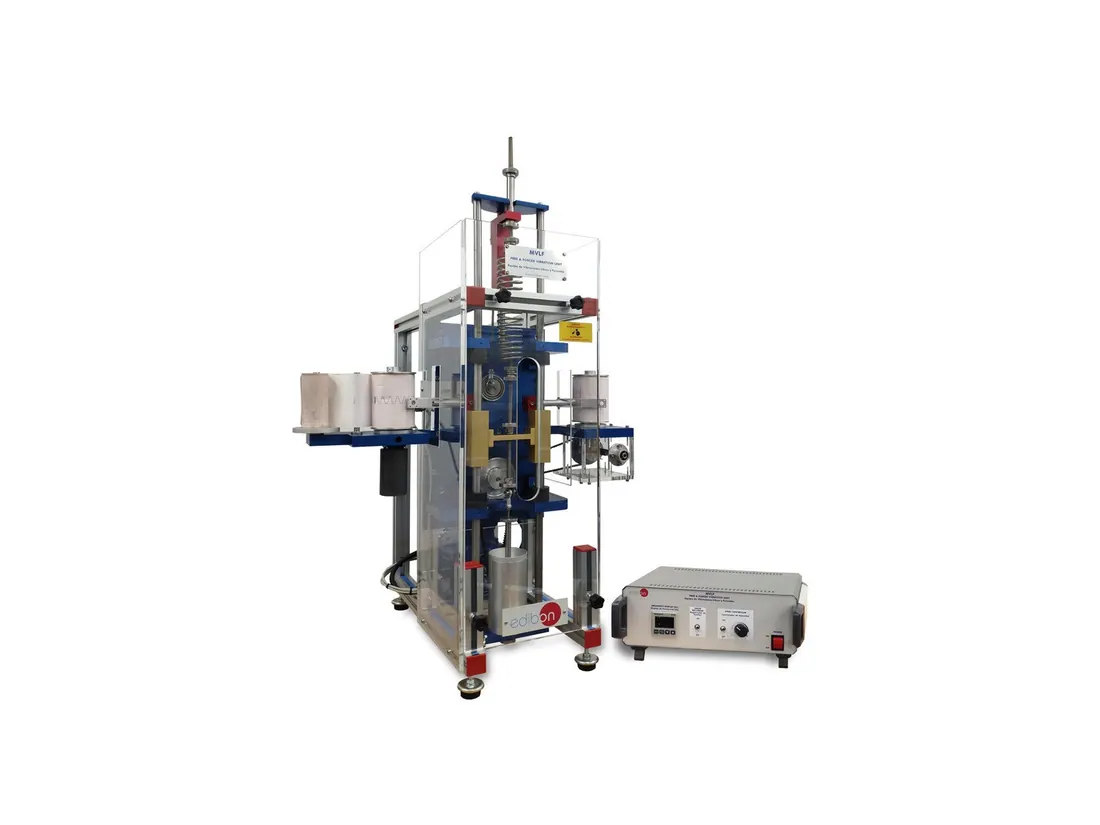

MVLF: Free & Forced Vibration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MVLF covers both free and forced vibration of a beam and spring system. An out of balance exciter drives the beam over a range of frequencies so resonance, amplitude response and the effect of a damper can be measured.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 660 x 560 x 1030 mm approx |
| Weight | 30 Kg approx |
| Specification | An unit consisting of two contra-rotating out-of-balance discs (mass = 0.742 Kg) may be attached to the mass carriage and are driven |
| Spring 1 | k = 3.30 kN/m. Spring 2: k = 1.22 kN/m. Spring 3: k = 0.47 kN/m |
| Specification | Five weights of 1 kg each can be added and secured to the mass carriage |
