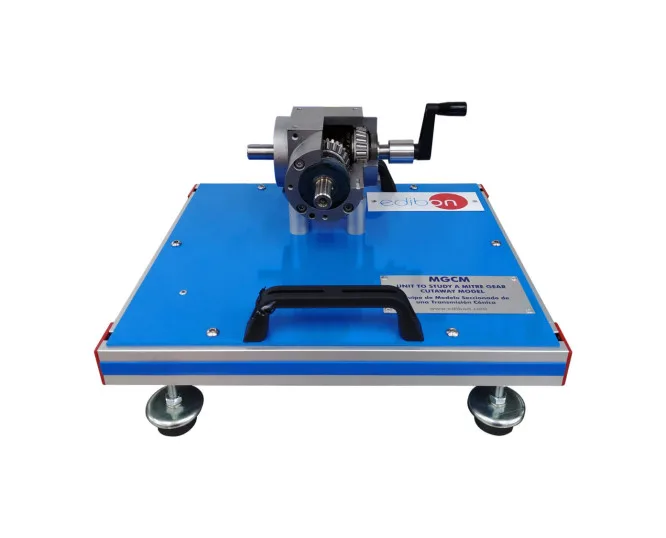

MGCM: Unit to Study a Mitre Gear Cutaway Model
Brand: EDIBON | Category: Scientific & Laboratory Equipment
This type of transmission, which uses bevel gears to transmit motion between two perpendicular shafts, can be studied with the Unit to Study a Mitre Gear Cutaway Model, "MGCM", designed by EDIBON.
Published teaching-model details
| Parameter | Value |
|---|---|
| Housing material | Steel |
| Gear ratio | 1:1 |
| Number of teeth | 26 |
| Unit dimensions | 370 × 310 × 200 mm approx. |
| Unit weight | 10 kg approx. |
Selected construction and installation values for the MGCM cutaway teaching model from brochure pages 2–4. This is a model for observing a transmission mechanism; the data does not establish suitability as an industrial production drive. Confirm the complete teaching set and safety instructions. Checked 2026-09-29.
