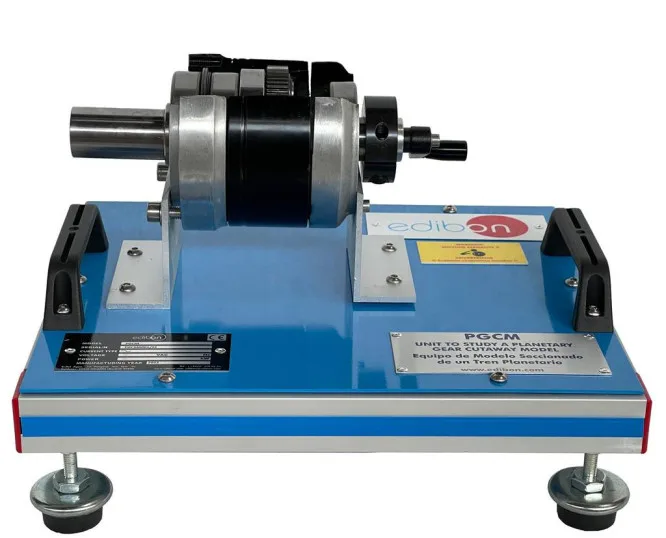

PGCM: Unit to Study a Planetary Gear Cutaway Model
Brand: EDIBON | Category: Scientific & Laboratory Equipment
One or more external or planet gears that revolve about a central or sun gear can be studied with the Unit to Study a Planetary Gear Cutaway Model, "PGCM", designed by EDIBON.
Published teaching-model details
| Parameter | Value |
|---|---|
| Gear arrangement | 1 sun gear, 3 planet gears and a ring gear |
| Transmission ratio | 1:5 |
| Unit dimensions | 350 × 300 × 160 mm approx. |
| Unit weight | 5 kg approx. |
Selected construction and installation values for the PGCM cutaway teaching model from brochure pages 2–4. This is a model for observing a transmission mechanism; the data does not establish suitability as an industrial production drive. Confirm the complete teaching set and safety instructions. Checked 2026-09-29.
