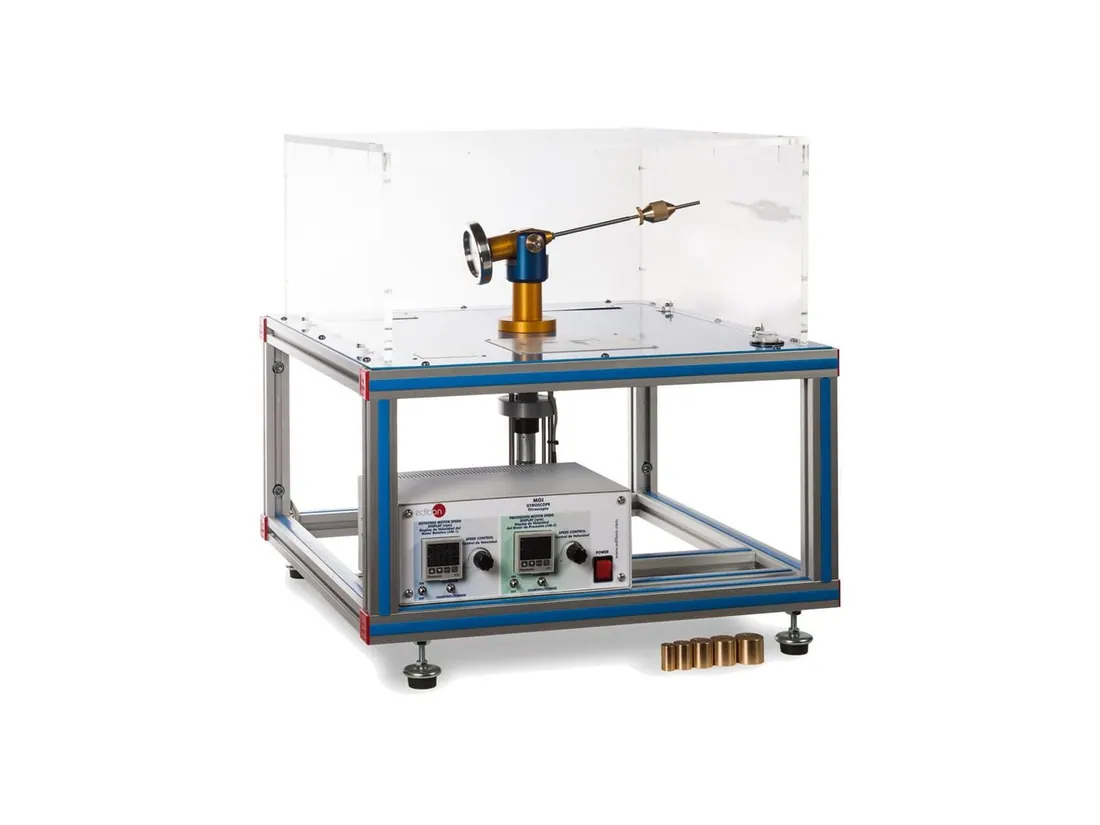

MGI: Gyroscope
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MGI is a motorised gyroscope for studying gyroscopic effects. Rotor speed and applied precession are measured so students can verify the relationship between spin velocity, precession velocity and the resulting gyroscopic couple.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 600 x 600 x 540 mm approx |
| Weight | 20 Kg approx |
| Rotor disc, diameter | 80 mm |
| Torque arm, length | 240 mm approx |
| Two motors rotating motor, speed range | 0 to 6000 rpm |
| Two motors precession motor, speed range | 0 to 60 rpm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Theory of Machines Lab
- CGU: Centrifugal Governor Unit
CGU is used to study engine speed governors. Porter, Proell and Hartnell arrangements can be run at controlled speed so sleeve lift is measured against rotational speed, giving the characteristic curve, sensitivity and effort of each governor.
- MEAL: Cam Analysis Unit
MEAL is used for the dynamic analysis of cams. Interchangeable cam profiles drive a follower whose lift is recorded against cam angle, and follower jump can be studied by varying the running speed and the spring load.
- MED: Static and Dynamic Balancing Unit
MED is used to balance rotating masses on a shaft. Weights are set at chosen angular and axial positions and the shaft is run in flexible bearings, so students can find the balancing mass and angle for both static and dynamic balance.
