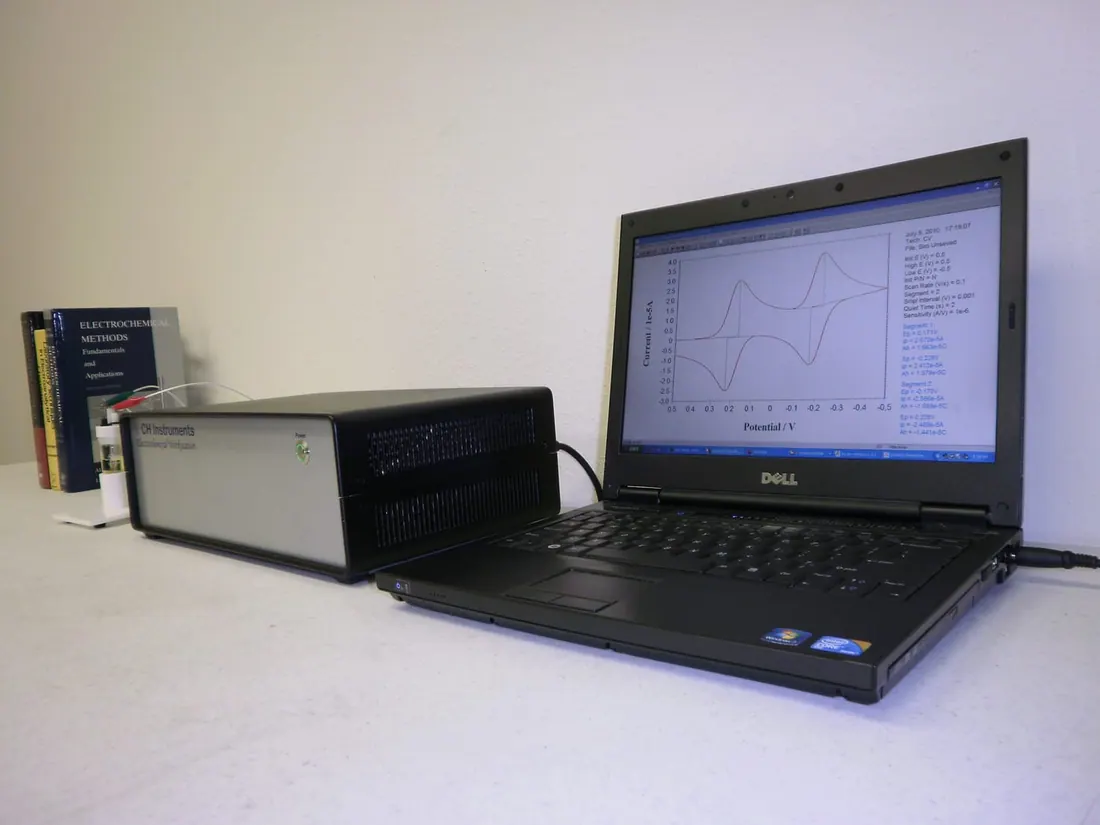

Model 1000D Series Multi-potentiostat
Brand: CH Instruments | Category: Nanotechnology
The 1000D series is an eight channel potentiostat that can drive eight independent cells or eight working electrodes sharing one reference and counter electrode. Each channel has its own on or off state, potential and sensitivity setting, and channels can sweep or step together with the primary channel.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Eight channel potentiostat for eight independent cells or a multi working electrode cell |
| Potential range, all channels | +/-10 V |
| Current range, each channel | 10 mA |
| Sensitivity scale | 1x10-9 to 0.001 A/V in 7 ranges |
| CV and LSV scan rate | 0.000001 to 5000 V/s sequential, 0.000001 to 25 V/s with eight channels simultaneous |
| Fast data acquisition | up to 1 MHz at 16 bit |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about CH Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
