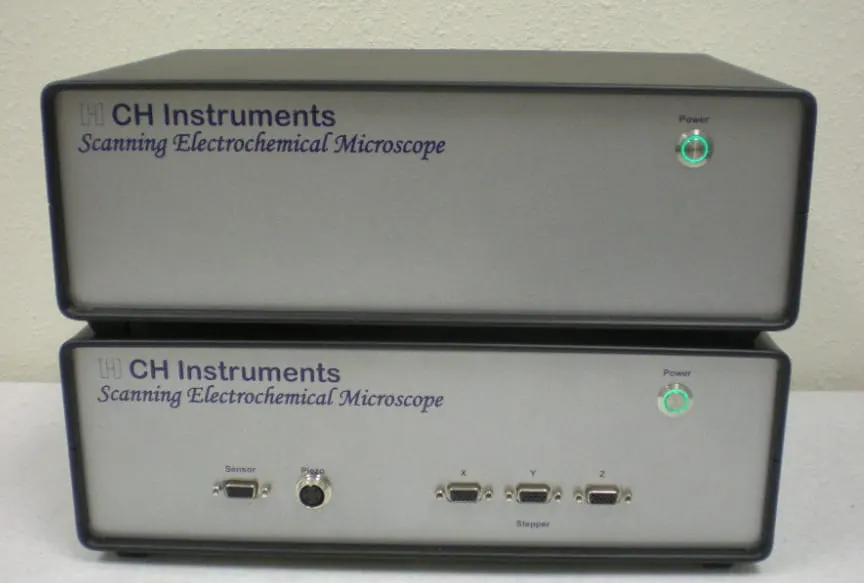

Model 920D Series Scanning Electrochemical Microscope (SECM)
Brand: CH Instruments | Category: Nanotechnology
The 920D scanning electrochemical microscope combines a bipotentiostat with a three dimensional nanopositioner, cell and sample holder to map chemical reactivity near surfaces. Modes include SECM imaging, probe scan and approach curves, surface interrogation SECM and surface patterned conditioning.
Technical Specifications
| Parameter | Value |
|---|---|
| X, Y, Z resolution | 1.6 nm with closed loop piezo positioner, 8 nm with stepper motor positioner |
| X, Y, Z total distance | 50 mm |
| Maximum potential | +/-10 V for both channels |
| Maximum current | +/-250 mA continuous, +/-350 mA peak |
| Measured current range | +/-10 pA to +/-0.25 A in 12 ranges |
| Fast data acquisition | dual channel 16 bit ADC, 1,000,000 samples per second |
