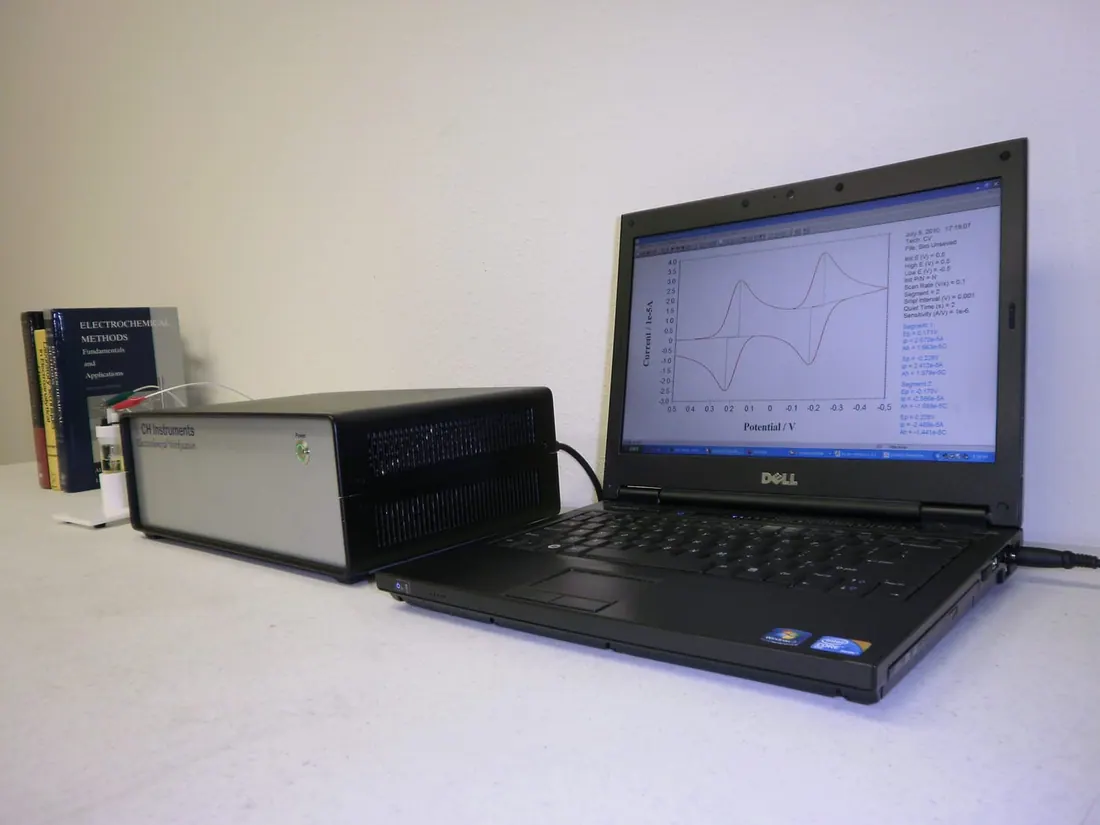

Model 1100D Series Power Potentiostat/Galvanostat
Brand: CH Instruments | Category: Nanotechnology
The 1100D series is a power potentiostat and galvanostat for work needing large current and high compliance voltage, such as battery testing, corrosion, electrolysis and electroplating. It uses a four electrode configuration and still resolves current down to tens of picoamperes. The 1140D adds a galvanostat.
Technical Specifications
| Parameter | Value |
|---|---|
| Potential range | -10 to 10 V |
| Current range | +/-2 A |
| Compliance voltage | +/-25 V |
| Sensitivity scale | 1x10-12 to 0.1 A/V in 12 ranges |
| CV and LSV scan rate | 0.000001 to 5000 V/s |
| Chassis dimensions | 14.25 in W x 9.25 in D x 4.75 in H, weight 17 lb |
