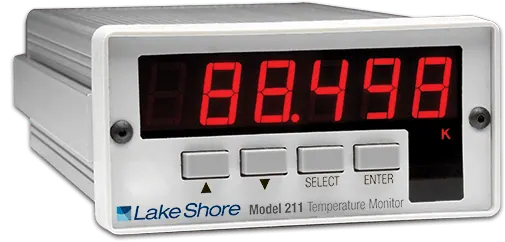

Model 211 Cryogenic Temperature Monitor
Brand: Lake Shore | Category: Nanotechnology
The Model 211 is a single channel cryogenic temperature monitor that displays sensor temperature from 1.4 K to 800 K. It accepts silicon and GaAlAs diodes and platinum, carbon-glass and Cernox resistance sensors, with 24-bit measurement and a 5-digit LED display. It is used for temperature readout.
Technical Specifications
| Parameter | Value |
|---|---|
| Number of inputs | 1, configurable from the front panel for any supported input type |
| Supported sensors | silicon and GaAlAs diodes, 100 Ω and 1000 Ω platinum, carbon-glass, Cernox and Rox RTDs |
| Standard curves | DT-470, DT-670, CTI-C, PT-100 and PT-1000 |
| Maximum update rate | 7 rdg/s |
| A/D resolution | 24-bit, 4-lead differential measurement |
| Display | 5-digit LED, shared 25-pin D-sub input connector |
