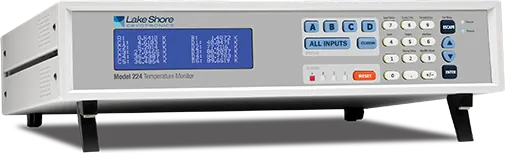

Model 224 Cryogenic Temperature Monitor
Brand: Lake Shore | Category: Nanotechnology
The Model 224 is a cryogenic temperature monitor with 12 sensor channels that measures temperature down to 300 mK. It reads silicon diodes and both positive and negative temperature coefficient resistance sensors, using 4-lead differential measurement with current reversal on RTDs.
Technical Specifications
| Parameter | Value |
|---|---|
| Diode input ranges | 0 V to 2.5 V and 0 V to 10 V, 10 µA +/-0.05% excitation |
| NTC RTD input ranges | 0 Ω to 10 Ω through 0 Ω to 100 kΩ, excitation from 1 mA down to 100 nA |
| PTC RTD input ranges | 0 Ω to 10 Ω through 0 Ω to 10 kΩ, 1 mA excitation |
| Measurement resolution | 10 µV on the 0 V to 2.5 V diode range |
| Electronic accuracy at 25 °C | +/-80 µV +/-0.005% of rdg on the 0 V to 2.5 V diode range |
| Measurement type | 4-lead differential, constant current with current reversal for RTDs |
