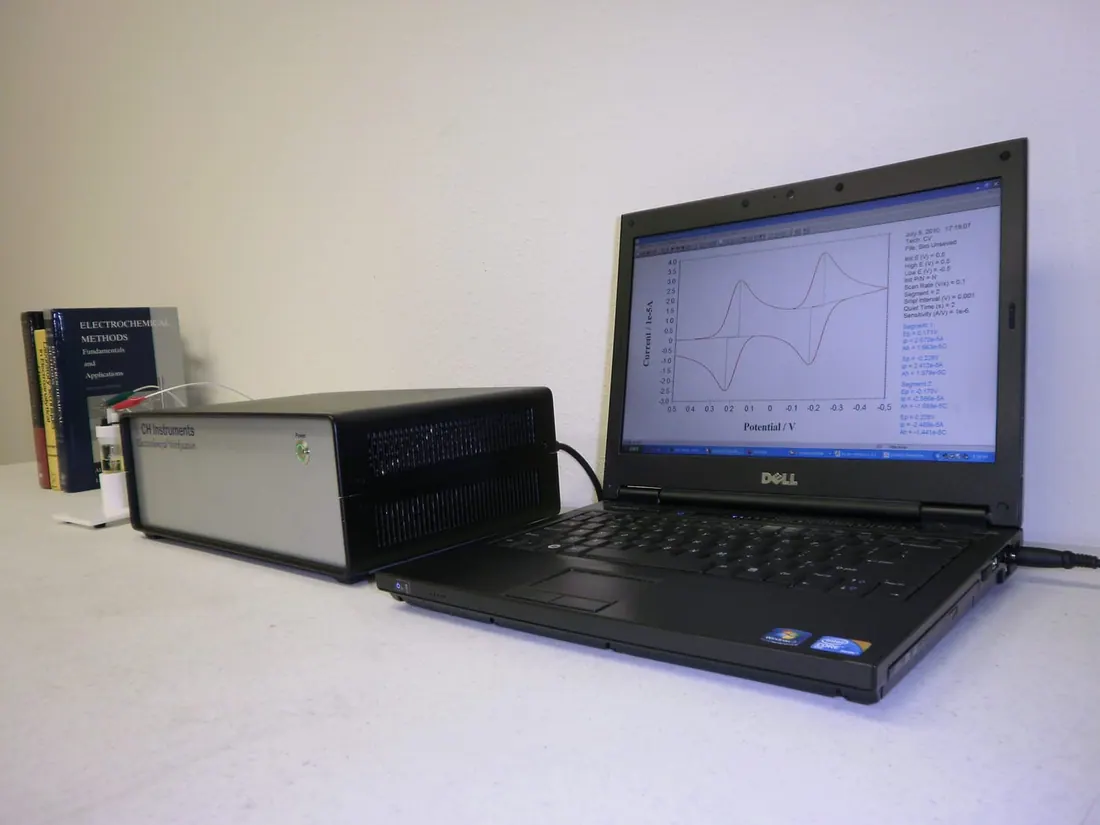

Model 600F Series Potentiostat/Galvanostat
Brand: CH Instruments | Category: Nanotechnology
The 600F series is a general purpose electrochemical workstation containing a fast function generator, dual channel data acquisition, a potentiostat and, on selected models, a galvanostat. It covers voltammetry, pulse techniques, corrosion and impedance work. Models run from the basic 600F to the 660F workstation.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum potential | +/-10 V |
| Maximum current | +/-250 mA continuous, +/-300 mA peak |
| Measured current range | +/-10 pA to +/-0.25 A in 12 ranges |
| CV and LSV scan rate | 0.000001 to 10,000 V/s |
| Impedance frequency | 0.00001 Hz to 3 MHz |
| Fast data acquisition | dual channel 16 bit ADC, 2,500,000 samples per second |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about CH Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Electrical & Electrochemical Characterisation
- Model 700F Series Bipotentiostat
The 700F series is a general purpose bipotentiostat and galvanostat for experiments needing two controlled working electrodes, such as rotating ring disk electrode work and dual channel detection. Used as a single channel instrument it matches the 600F series. Models range from the 700F to the 760F.
- Model 400C Series Time-resolved Electrochemical Quartz Crystal Microbalance (EQCM)
The 400C series pairs a quartz crystal microbalance with a potentiostat so mass change at the electrode is recorded alongside potential, current and charge. It is used for metal deposition, ion transport in polymer films and biosensor studies. Models 400C to 440C are offered, the 440C adding a galvanostat.
- Model 800D Series Electrochemical Detector
The 800D series is built for electrochemical detection, monitoring current through a flow cell in liquid chromatography or flow injection analysis. Its low noise circuitry measures down to picoamperes and plots three decades of current scale during a run. The 8x2D models add a bipotentiostat for dual channel work.
