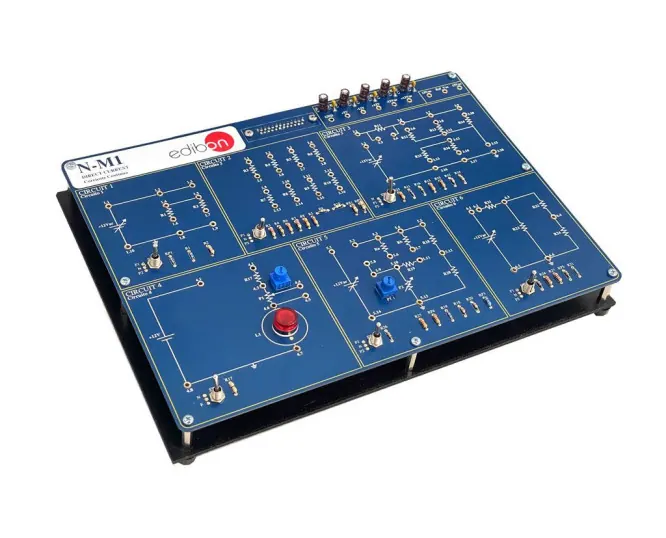

N-M1: Direct Current (DC) Circuits Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A bench module for the fundamentals of direct current, covering Ohm's law, resistor characteristics, series and parallel association, the Wheatstone bridge and Kirchhoff's laws. Faults can be introduced into most circuits so students diagnose why the circuit stops working properly.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 300 x 210 x 45 mm |
| Weight | 300 g approx |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
