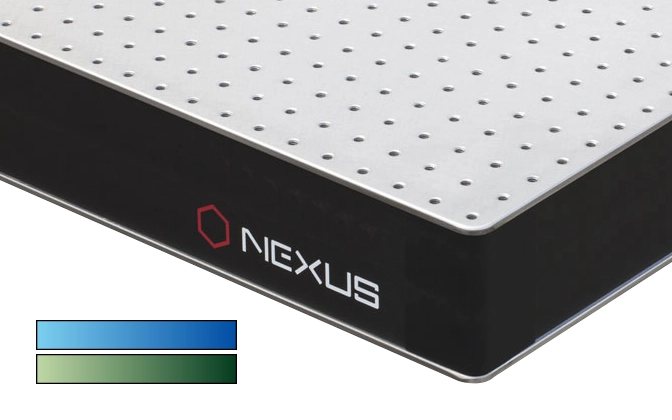

Nexus Optical Breadboards, Optimized Damping, 110 mm (4.3") Thick
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A 110 mm thick Nexus breadboard range covering 600 mm x 900 mm up to 1200 mm x 1800 mm. The deeper honeycomb core raises stiffness for larger optical layouts that still need to sit on a frame rather than a full optical table.
Technical Specifications
| Parameter | Value |
|---|---|
| Breadboard thickness | 110 mm (4.3") |
| Top skin flatness | plus or minus 0.1 mm over any 600 mm x 600 mm area |
| Top and bottom plates | 5 mm thick stainless steel, 4003 grade working surface |
| Core | high-density plated steel honeycomb, 0.26 mm thick |
| Maximum screw depth | 105 mm |
| Specification | Compatible with breadboard frames, isolators and ScienceDesk frames |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
