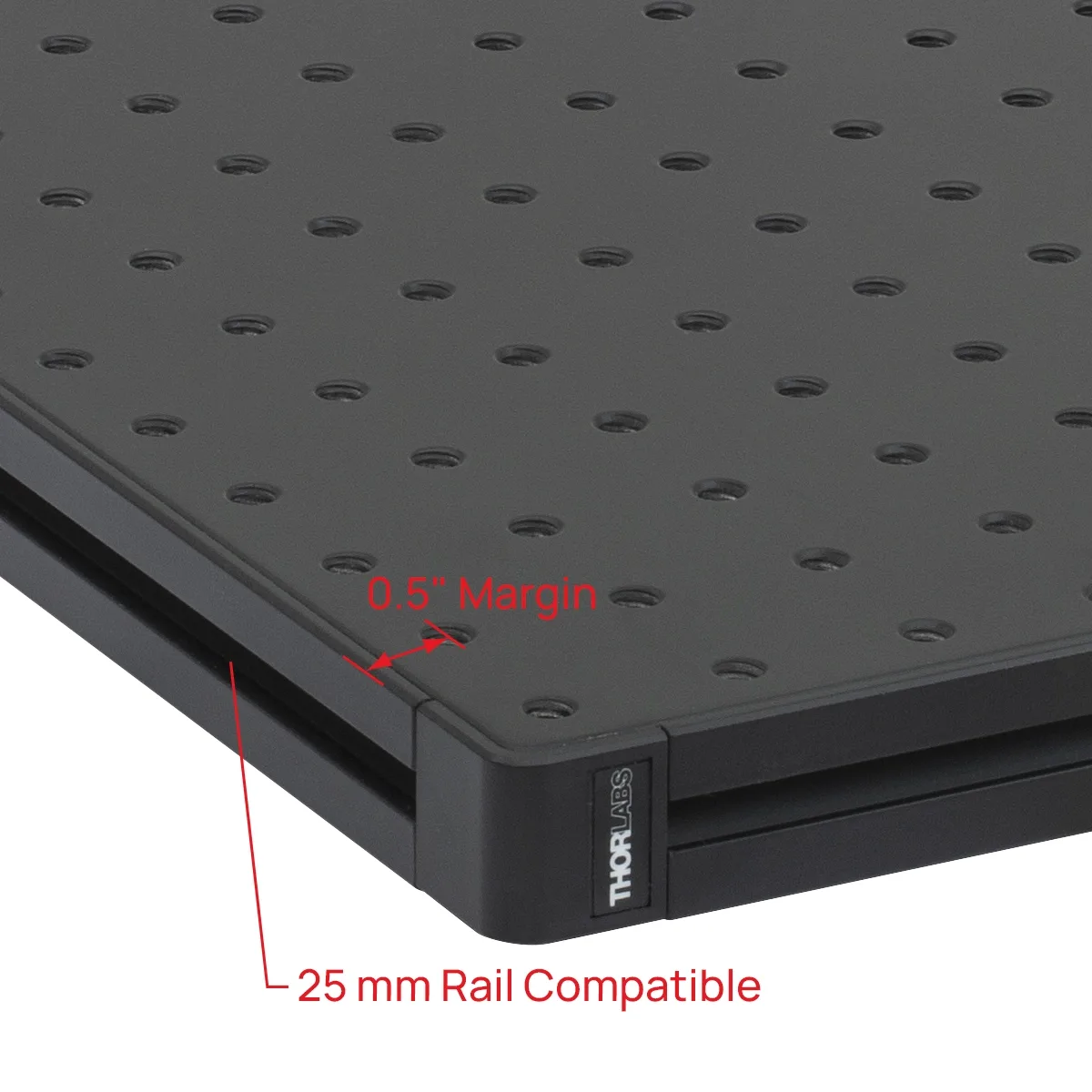

Aluminum Breadboards: High Stiffness, 25 mm (0.98") Thick
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Lightweight non-magnetic breadboards built from aluminium plates over an aluminium honeycomb core. Matching the coefficient of thermal expansion throughout reduces thermal drift, and a T-slot in each side accepts 25 mm construction rails.
Technical Specifications
| Parameter | Value |
|---|---|
| Breadboard thickness | 25 mm (0.98") |
| Top skin flatness | plus or minus 0.15 mm over any 0.3 square metres |
| Top plate | 6 mm thick aluminium, bottom plate: 3 mm thick aluminium |
| Core | high-density plated aluminium honeycomb |
| Maximum screw depth | 6 mm from the top surface |
| Specification | Sides include a T-slot for compatibility with 25 mm rails |
